Martijn Wieling

University of Groningen

- Introduction
- ERPs to study grammatical gender violations
- Research question

- Design
- Methods (
`R`

code) and results - Discussion

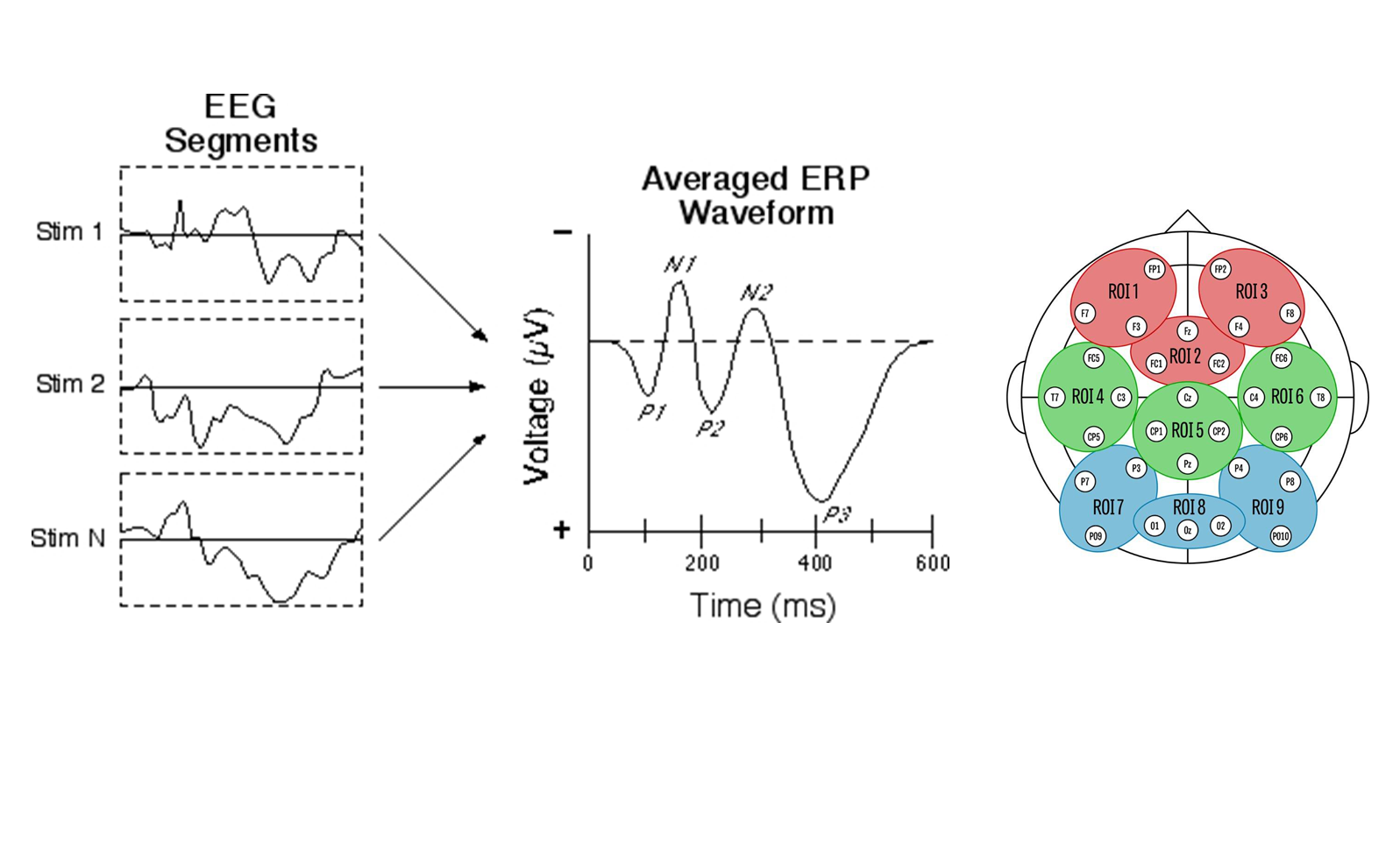

- A P600 (a positivity 'around' 600 ms. after stimulus onset) is sensitive to grammatical violations
- An N400 (a negativity 'around' 400 ms. after stimulus onset) is modulated by semantic context and lexical properties of a word
- The P600/N400 are found by comparing incorrect to correct sentences

- Native speakers appear to show a P600 for grammatical gender violations
- But analyzed by averaging over items and over subjects!

- In this study we are interested in how non-native speakers respond to grammatical gender violations (joint work with Nienke Meulman)
- Grammatical gender is very hard to learn for L2 learners
- Even though behaviorally L2 learners might show correct responses, the brain may reveal differences in processing grammatical gender

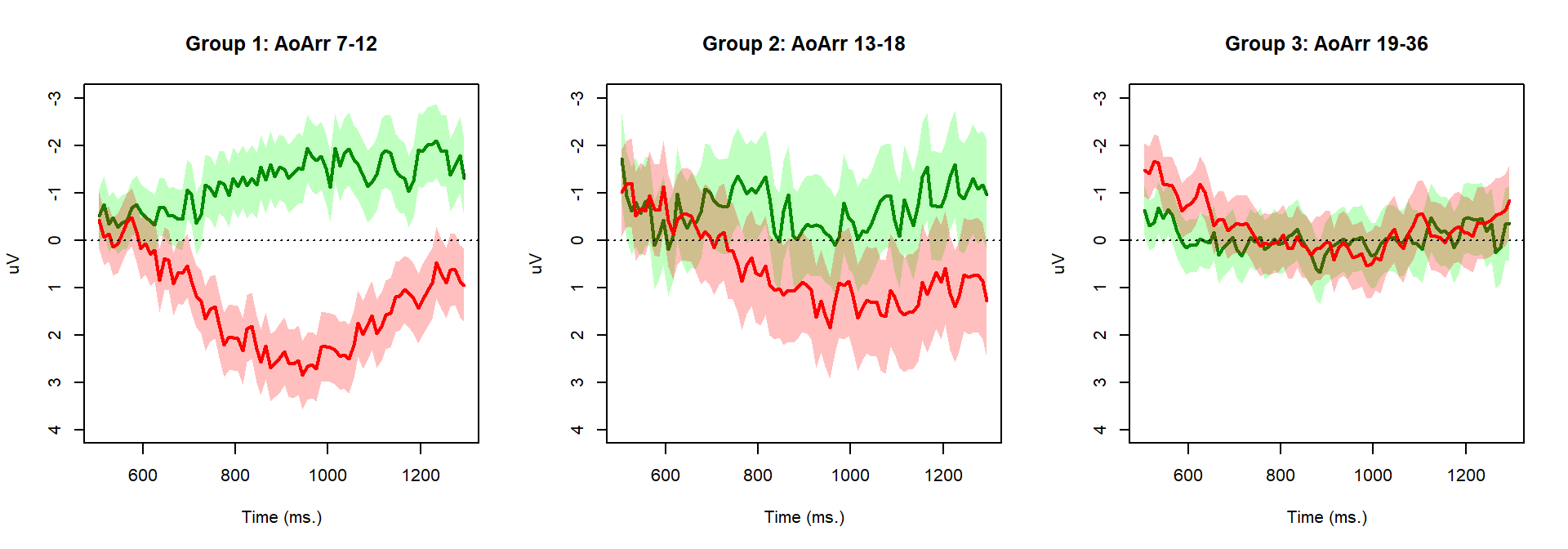

- Is the P600 for grammatical gender violations dependent on age of arrival for the L2 learners of German?

- Today: analysis of single region of interest (ROI 8)

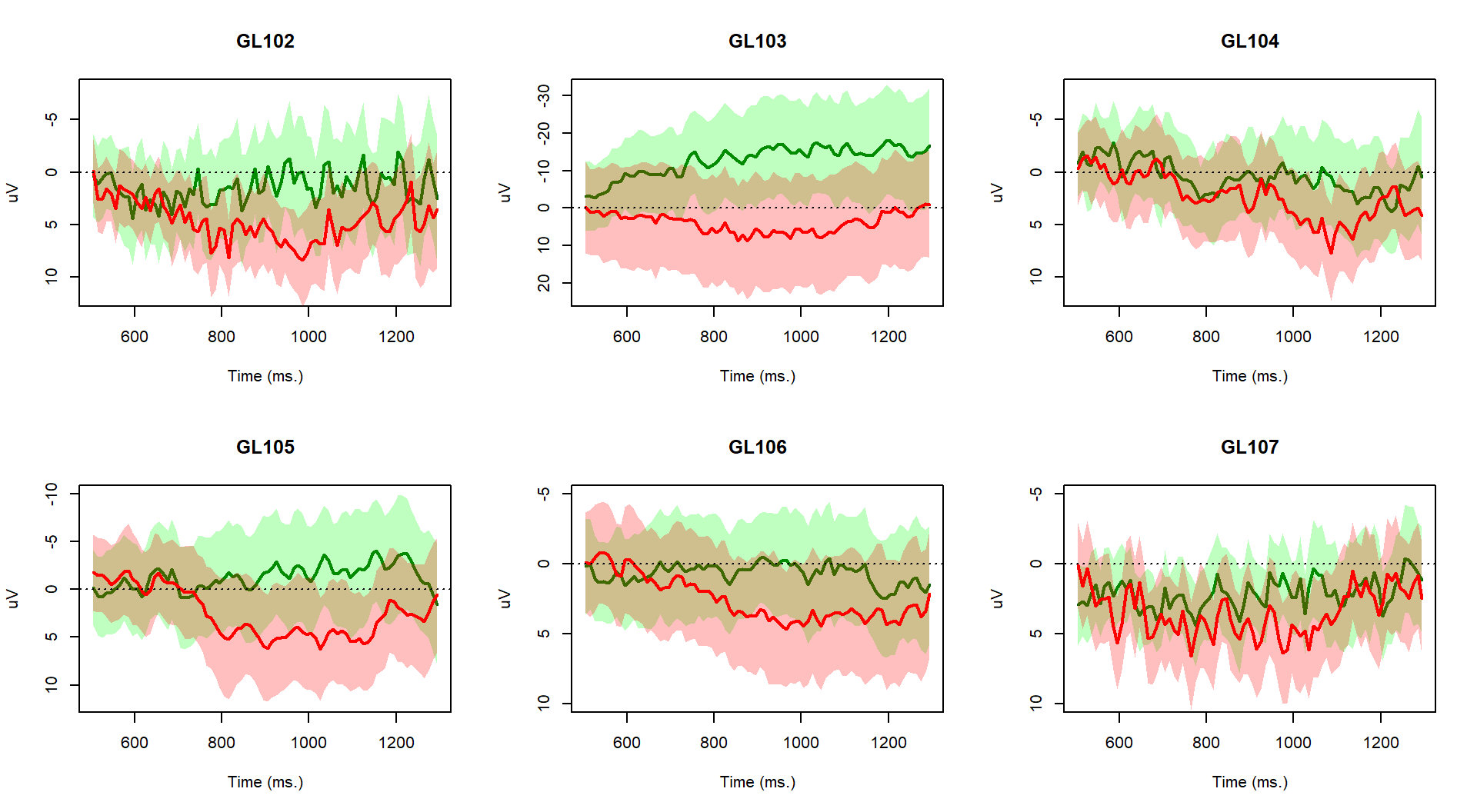

- 67 L2 speakers of German (Slavic L1)
- Auditory presentation of correct sentences or sentences with a grammatical gender violation (incorrect determiner; no determiners in L1)
- 48 items in each condition: 96 trials per participant (minus artifacts)
- Example:

Nach der Schlägerei ist das/*der Auge des Angestellten von der Krankenschwester versorgt worden.

[After the fight theneut/*themasc eye of the worker was treated by the nurse]

```
load("dat.rda")
```

```
dat = dat[order(dat$Subject, dat$TrialNr, dat$Time), ] # sort data per trial
dat$start.event <- dat$Time == min(dat$Time) # mark the start of every new trial
head(dat)
```

```
# uV Time Subject Word TrialNr Type AoArr start.event
# 721 8.94 505 GL102 Wald 2 incor 8 TRUE
# 722 15.56 515 GL102 Wald 2 incor 8 FALSE
# 723 21.31 525 GL102 Wald 2 incor 8 FALSE
# 724 13.32 535 GL102 Wald 2 incor 8 FALSE
# 725 19.11 545 GL102 Wald 2 incor 8 FALSE
# 726 17.96 555 GL102 Wald 2 incor 8 FALSE
```

```
dim(dat) # signal was downsampled to 100 Hz
```

```
# [1] 442160 8
```

`mgcv`

version 1.8.36, `itsadug`

version 2.4)```
library(mgcv)
library(itsadug)
# duration discrete=F: 3600 s.; 1/2/4/8/16 threads: 1000/560/300/200/250 s.
system.time(m0 <- bam(uV ~ s(Time, by = Type) + Type + s(Time, Subject, by = Type,
bs = "fs", m = 1) + s(Time, Word, by = Type, bs = "fs", m = 1), data = dat,
rho = rhoval, AR.start = dat$start.event, discrete = T, nthreads = 8))
```

```
# user system elapsed
# 1088 2948 289
```

- Time window was set to [500,1300] to limit CPU time
- ACF of model without
`rho`

was used to determine`rhoval`

: 0.91 - Note that the difference between correct and incorrect will be overly conservative

```
summary(m0) # slides only show the relevant part of the summary
```

```
# Parametric coefficients:
# Estimate Std. Error t value Pr(>|t|)
# (Intercept) -0.561 0.521 -1.08 0.282
# Typeincor 0.803 0.670 1.20 0.231
#
# Approximate significance of smooth terms:
# edf Ref.df F p-value
# s(Time):Typecor 1.11 1.20 0.24 0.635
# s(Time):Typeincor 3.32 4.32 6.77 1.65e-05 ***
# s(Time,Subject):Typecor 58.99 603.00 0.90 <2e-16 ***
# s(Time,Subject):Typeincor 53.97 602.00 0.48 <2e-16 ***
# s(Time,Word):Typecor 68.31 864.00 0.29 <2e-16 ***
# s(Time,Word):Typeincor 65.86 863.00 0.26 <2e-16 ***
#
# Deviance explained = 5.2%
```

```

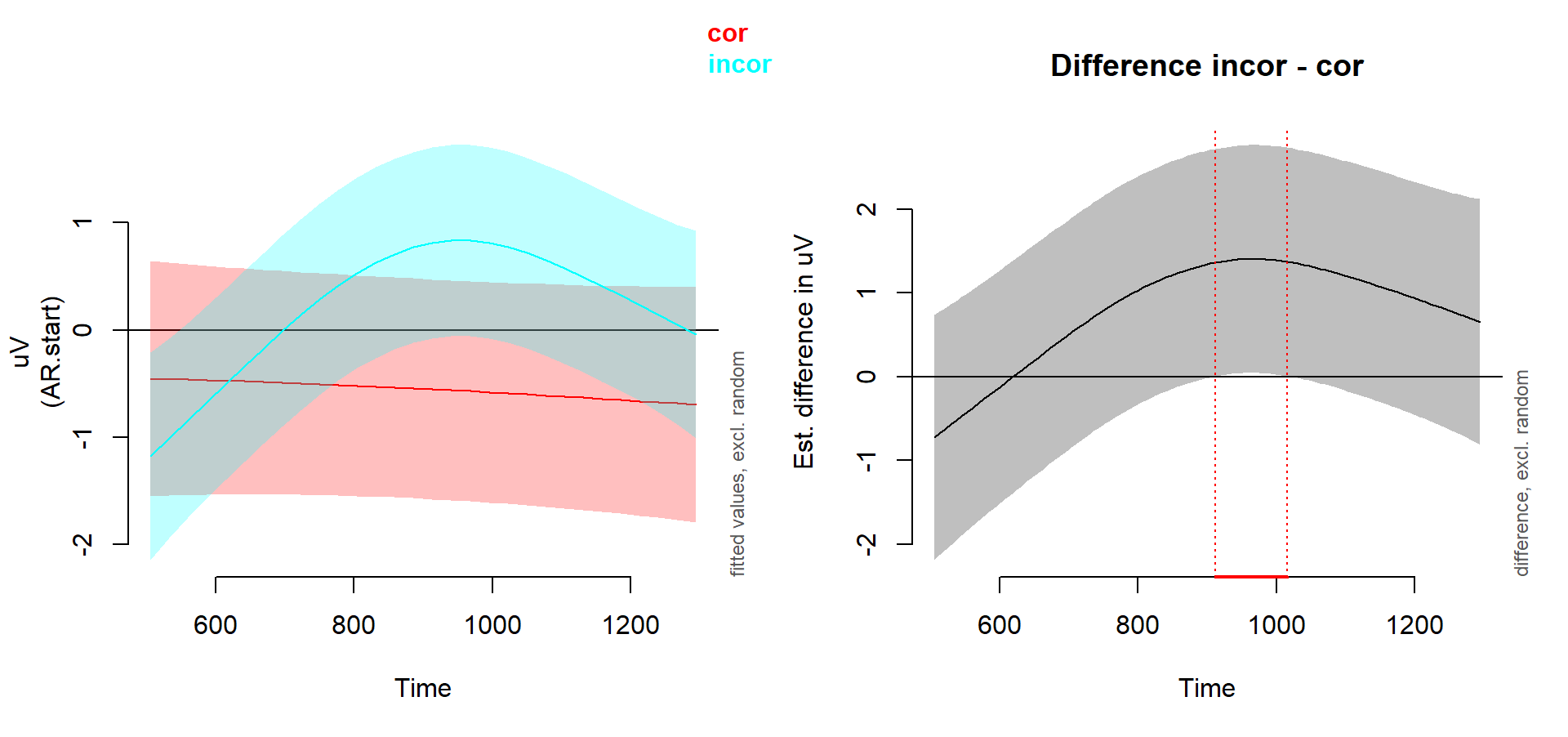

plot_smooth(m0, view = "Time", rug = F, plot_all = "Type", main = "")
plot_diff(m0, view = "Time", comp = list(Type = c("incor", "cor"))) # overly conservative
```

```
dat$IsIncorrect <- (dat$Type == "incor") * 1 # create binary predictor: 0 = cor, 1 = incor
m0b <- bam(uV ~ s(Time) + s(Time, by = IsIncorrect) + s(Time, Subject, bs = "fs",
m = 1) + s(Time, Subject, by = IsIncorrect, bs = "fs", m = 1) + s(Time, Word,
bs = "fs", m = 1) + s(Time, Word, by = IsIncorrect, bs = "fs", m = 1), data = dat,
rho = rhoval, AR.start = dat$start.event, discrete = T, nthreads = 8)
```

`s(Time, by=IsIncorrect)`

is equal to 0 whenever`IsIncorrect`

equals 0- Correct case:
`s(Time) + 0 = s(Time)`

- Incorrect case:
`s(Time) + s(Time, by=IsIncorrect)`

**Difference**between correct and incorrect:`s(Time, by=IsIncorrect)`

- Binary curve difference is
**non-centered**(i.e. includes intercept difference)

- This approach is not overly conservative, as the dependency between the nonlinear patterns for the correct and incorrect case per subject (and word) in the random effects is explicitly included (Sóskuthy, 2021)

```
summary(m0b, re.test = FALSE) # summary without random effects (quicker to compute)
```

```
# Parametric coefficients:
# Estimate Std. Error t value Pr(>|t|)
# (Intercept) -0.573 0.468 -1.22 0.221
#
# Approximate significance of smooth terms:
# edf Ref.df F p-value
# s(Time) 1.64 2.05 0.6 0.535
# s(Time):IsIncorrect 4.08 5.00 3.9 0.002 **
```

`s(Time):IsIncorrect`

shows the significance of the combined intercept and non-linear difference between correct and incorrect

```
dat$TypeO <- as.ordered(dat$Type) # creating an ordered factor ...
contrasts(dat$TypeO) <- "contr.treatment" # ... with contrast treatment: cor = 0, incor = 1
m0o <- bam(uV ~ s(Time) + s(Time, by = TypeO) + TypeO + s(Time, Subject, bs = "fs",
m = 1) + s(Time, Subject, by = TypeO, bs = "fs", m = 1) + s(Time, Word, bs = "fs",
m = 1) + s(Time, Word, by = TypeO, bs = "fs", m = 1), data = dat, rho = rhoval,
AR.start = dat$start.event, discrete = T, nthreads = 8)
```

`s(Time, by=TypeO)`

is equal to 0 whenever`TypeO`

equals`cor`

(reference level)**Difference**between correct and incorrect:`s(Time, by=TypeO) + TypeO`

`s(Time, by=TypeO)`

:**centered**non-linear difference`TypeO`

(must be included): intercept difference

- The random-effects specification is effectively the same as that of the binary curve model, given that factor smooths involving ordered factors are not centered
- This
*random reference/difference smooths approach*(Sóskuthy, 2021) is appropriate and not overly conservative

```
summary(m0o, re.test = FALSE)
```

```
# Parametric coefficients:
# Estimate Std. Error t value Pr(>|t|)
# (Intercept) -0.573 0.468 -1.22 0.221
# TypeOincor 0.789 0.575 1.37 0.170
#
# Approximate significance of smooth terms:
# edf Ref.df F p-value
# s(Time) 1.64 2.05 0.60 0.535
# s(Time):TypeOincor 3.08 4.00 4.58 0.001 **
```

- The \(p\)-value of the parametric coefficient
`TypeOincor`

represents the significance of the**intercept****difference**between correct and incorrect - The \(p\)-value of the smooth term
`s(Time):TypeOincor`

represents the significance of the**non-linear****difference**between correct and incorrect

```

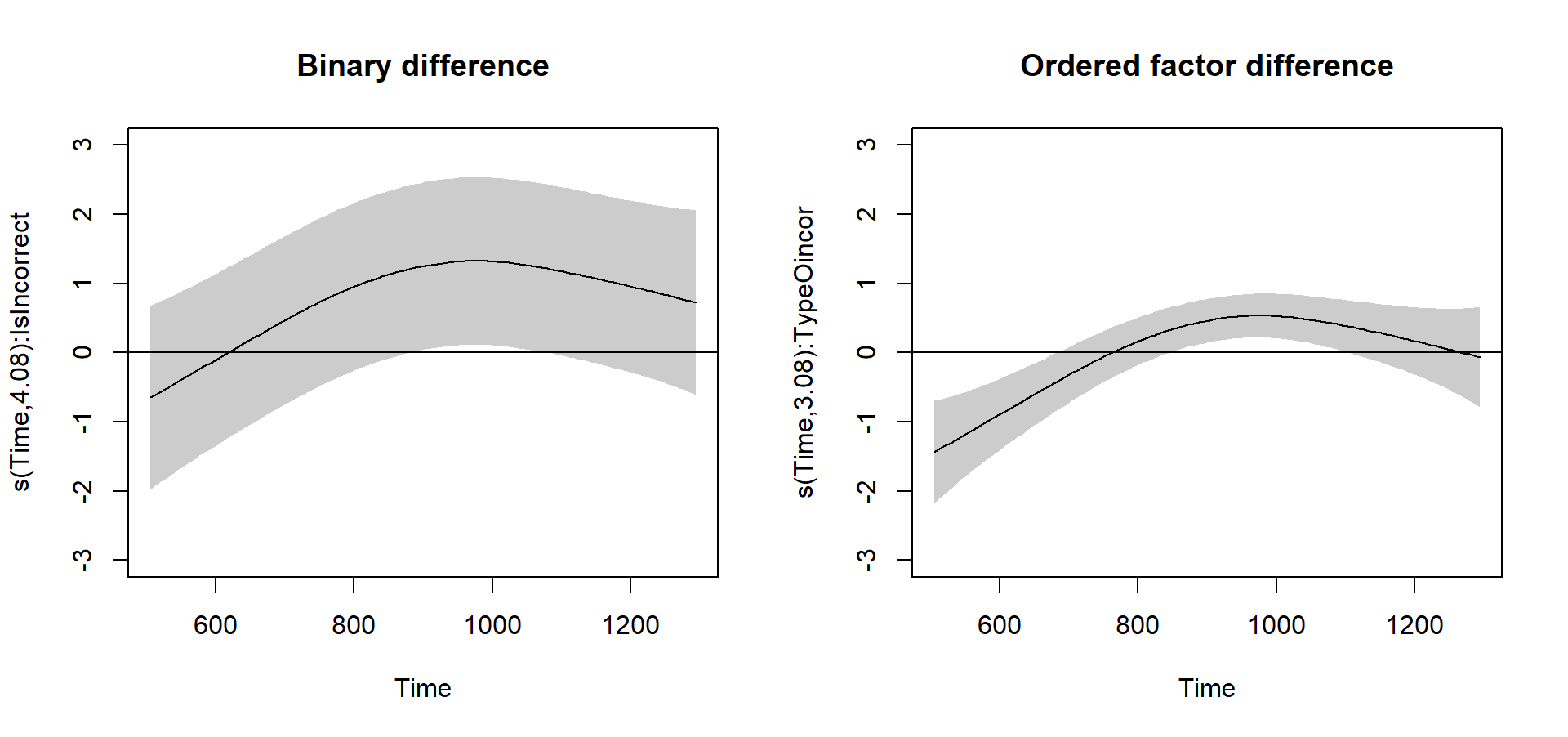

plot(m0b, select = 2, shade = T, rug = F, main = "Binary difference", ylim = c(-3, 3))
plot(m0o, select = 2, shade = T, rug = F, main = "Ordered factor difference", ylim = c(-3, 3))
```
