Mixed-effects regression and eye-tracking data

• Introduction
  • Gender processing in Dutch
  • Eye-tracking to reveal gender processing
• Design
• Analysis
• Conclusion

• Study's goal: assess if Dutch people use grammatical gender to anticipate upcoming words
• This study was conducted together with Hanneke Loerts and is published in the Journal of Psycholinguistic Research (Loerts, Wieling and Schmid, 2012)
• What is grammatical gender?
  • Gender is a property of a noun
  • Nouns are divided into classes: masculine, feminine, neuter, ...

  • E.g., hond ('dog') = common, paard ('horse') = neuter

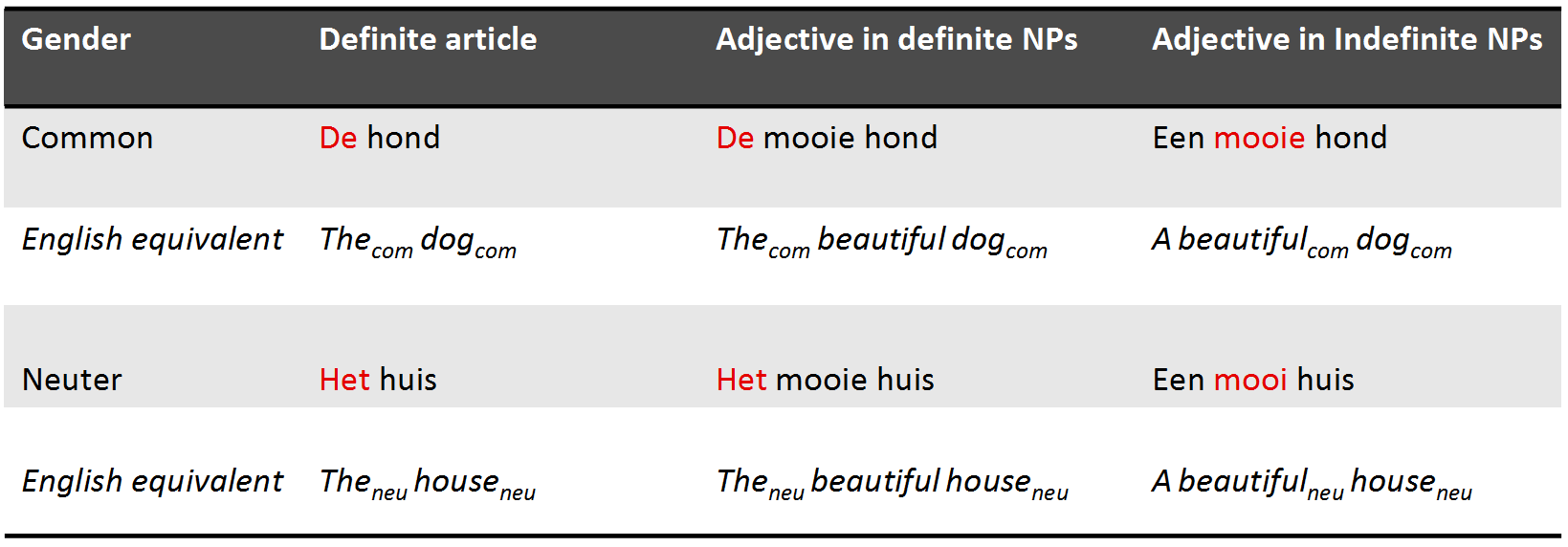

• The gender of a noun can be determined from the forms of elements syntactically related to it

• Gender in Dutch: 70% common, 30% neuter
• When a noun is diminutive it is always neuter
• Gender is unpredictable from the root noun and hard to learn

• Eye tracking reveals incremental processing of the listener during time course of speech signal
• As people tend to look at what they hear (Cooper, 1974), lexical competition can be tested

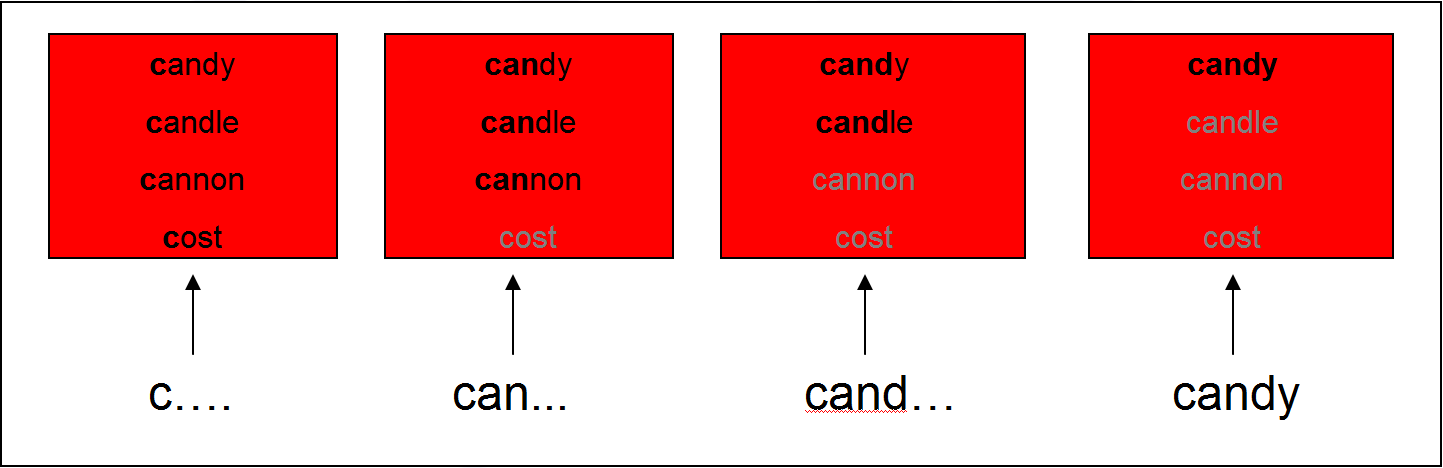

• Cohort Model (Marslen-Wilson & Welsh, 1978): Competition between words is based on word-initial activation

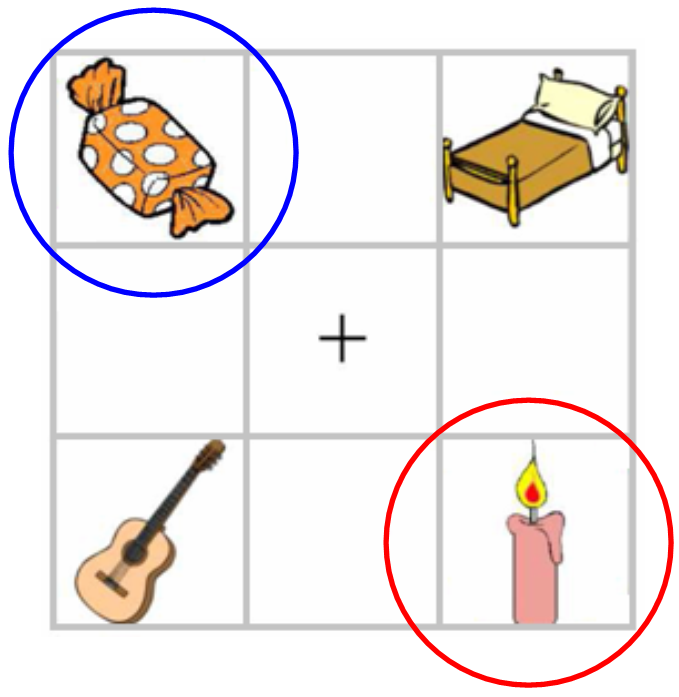

• This can be tested using the visual world paradigm: following eye movements while participants receive auditory input to click on one of several objects on a screen

• Subjects hear: "Pick up the candy" (Tanenhaus et al., 1995)
• Fixations towards target (Candy) and competitor (Candle): support for the Cohort Model

• Other models of lexical processing state that lexical competition occurs based on all acoustic input (e.g., TRACE, Shortlist, NAM)
• Does gender information restrict the possible set of lexical candidates?
  • If you hear de, do you focus more on a dog (de hond) than on a horse (het paard)?
  • Previous studies (e.g., Dahan et al., 2000 for French) have indicated gender information restricts the possible set of lexical candidates
• We will investigate if this also holds for Dutch with its difficult gender system using the VWP
• We analyze the data using mixed-effects regression in R

• 28 Dutch participants heard sentences like:
• Klik op de rode appel ('click on the red apple')
• Klik op het plaatje met een blauw boek ('click on the image of a blue book')

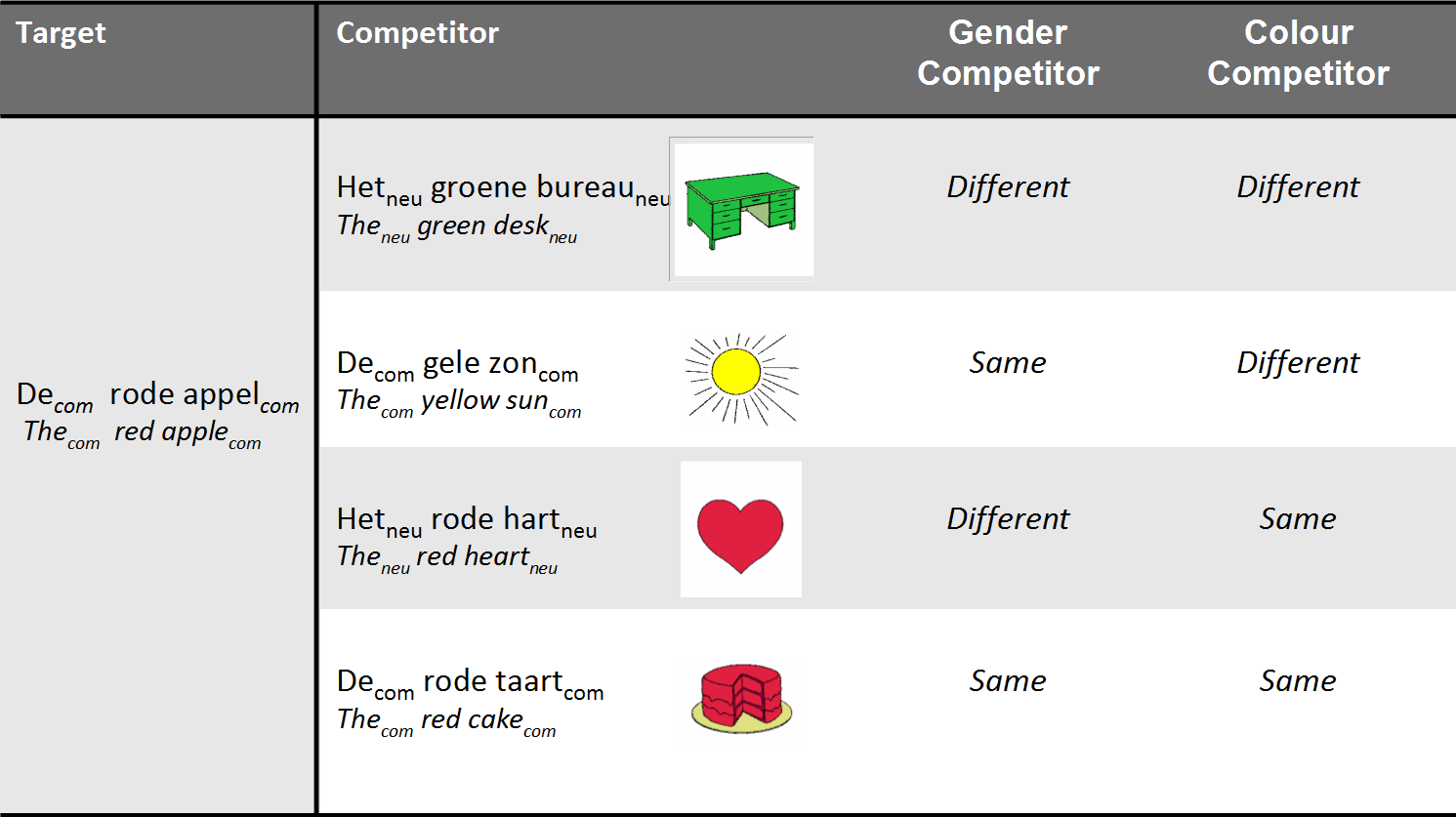

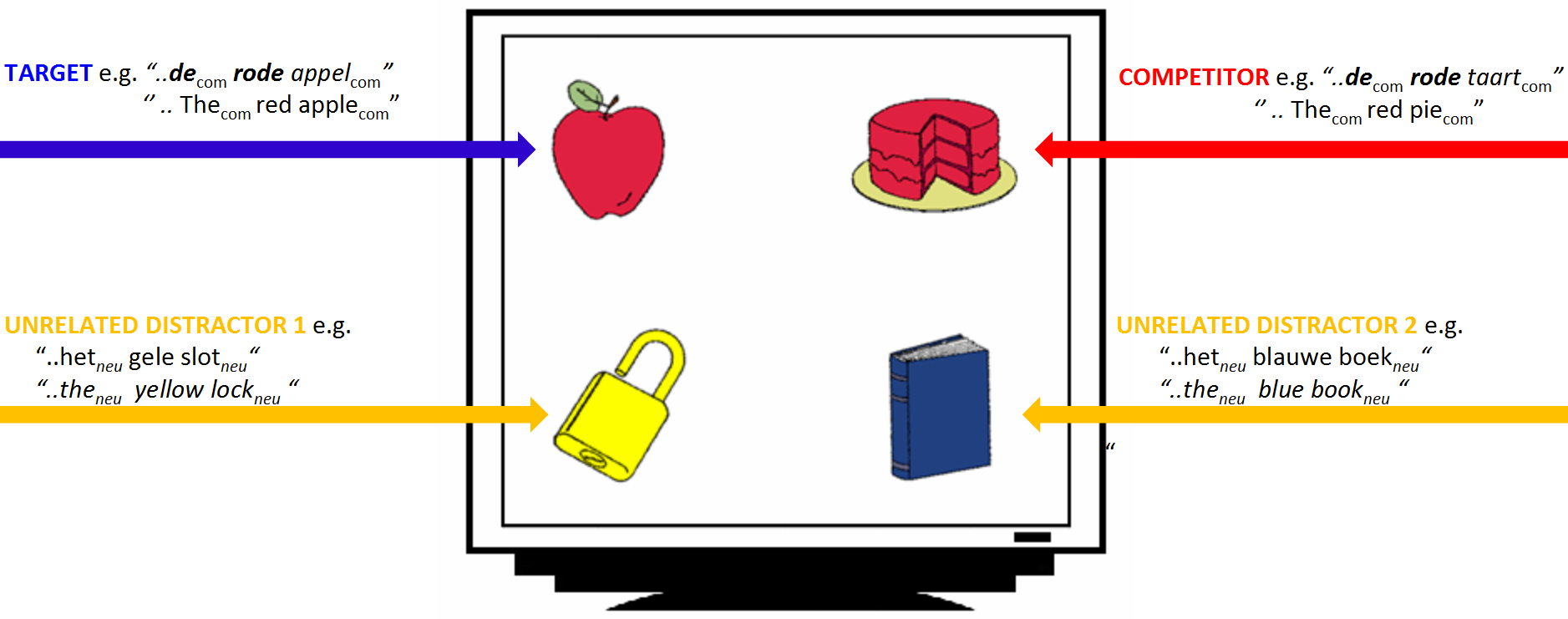

• They were shown 4 nouns varying in color and gender
• Eye movements were tracked with a Tobii eye-tracker (E-Prime extensions)

• Subjects were shown 96 different screens
• 48 screens for indefinite sentences (klik op het plaatje met een rode appel)
• 48 screens for definite sentences (klik op de rode appel)

• Difficulty 1: choosing the dependent variable
  • Fixation difference between Target and Competitor
  • Fixation proportion on Target: requires transformation to empirical logit, to ensure the dependent variable is unbounded: \(log( \frac{(y + 0.5)}{(N - y + 0.5)} )\) (or use logistic regression)
  • Logistic regression comparing fixations on Target versus Competitor
• Difficulty 2: selecting a time span
  • Note that about 200 ms. is needed to plan and launch an eye movement
  • It is possible (and better) to take every individual sampling point into account, but we will opt for the simpler approach here (in contrast to the GAM approach explained in later lectures)

• Here we use logistic regression comparing fixations on Target versus Competitor
• Averaged over the time span starting 200 ms. after the onset of the determiner and ending 200 ms. after the onset of the noun (about 800 ms.)
• This ensures that gender information has been heard and processed, both for the definite and indefinite sentences

• Dependent variable is binary (1: success, 0: failure), not continuous
• Transform to continuous variable via log odds link function: \(\log(\frac{p}{1-p})\) = logit\((p)\)
  • Done automatically in regression by setting family="binomial"
• Generalized linear model: specific link function and error distribution
• Interpret coefficients w.r.t. success as logits: in R: plogis(x)

• Variable of interest:
  • Competitor gender vs. target gender
• Variables which could be important:
  • Competitor color vs. target color
  • Gender of target (common or neuter)
  • Definiteness of target

• Participant-related variables:
  • Gender (male/female), age, education level
  • Trial number
• Design control variables:
  • Competitor position vs. target position (up-down or down-up)
  • Color of target
  • (anything else you are not interested in, but potentially problematic)

• Check if variables correlate highly
  • If so: exclude variable / combine variables (residualization is not OK: Wurm & Fisicaro, 2014)
  • See Chapter 6.2.2 of Baayen (2008)
• Check distribution of numerical predictors
  • If skewed: it may help to try to make them normal (e.g., log. or inverse transformation)
  • With logistic regression there is no normality assumption for the residuals
• Center your numerical predictors when doing mixed-effects regression
  • See previous lecture

head(eye)

#   Subject   Item TargetDefinite TargetNeuter TargetColor TargetPlace CompColor CompPlace TrialID
# 1    S300   boom              1            0       green           3     brown         2       1
# 2    S300  bloem              1            0         red           4     green         2       2
# 3    S300  anker              1            1      yellow           3    yellow         2       3
# 4    S300   auto              1            0       green           3     brown         2       4
# 5    S300   boek              1            1        blue           4      blue         3       5
# 6    S300 varken              1            1       brown           1     green         3       6
#   Age IsMale Edulevel SameColor SameGender TargetFocus CompFocus
# 1  52      0        1         0          1          43        41
# 2  52      0        1         0          0         100         0
# 3  52      0        1         1          1          73        27
# 4  52      0        1         0          0         100         0
# 5  52      0        1         1          0          12        21
# 6  52      0        1         0          0           0        51

# In the Gaussian case, the REML parameter needs to be set to TRUE when comparing models only
# differing in the random effects; For glmer, this parameter is absent, as it only allows ML fitting.
model1 <- glmer(cbind(TargetFocus, CompFocus) ~ (1 | Subject), data = eye, family = "binomial")
model2 <- glmer(cbind(TargetFocus, CompFocus) ~ (1 | Subject) + (1 | Item), data = eye, family = "binomial")
AIC(model1) - AIC(model2)

# [1] 2917

• The AIC difference is much higher than 2, so we include the by-item random intercept

model3 <- glmer(cbind(TargetFocus, CompFocus) ~ SameColor + (1 | Subject) + (1 | Item), data = eye, family = "binomial")
summary(model3)$coef

#             Estimate Std. Error z value Pr(>|z|)
# (Intercept)     1.68     0.1209    13.9 7.44e-44
# SameColor      -1.48     0.0118  -125.5 0.00e+00

• SameColor is highly significant
• Negative estimate: less likely to focus on target
• We need to test if the effect of SameColor varies per subject
• If there is much between-subject variation, this will influence variable signficance

model4 <- glmer(cbind(TargetFocus, CompFocus) ~ SameColor + (1 + SameColor | Subject) + (1 | Item), data = eye,
    family = "binomial")  # the random slope SameColor needs to be correlated with the random intercept
AIC(model3) - AIC(model4)

# [1] 2218

summary(model4)$varcor

#  Groups  Name        Std.Dev. Corr
#  Item    (Intercept) 0.359
#  Subject (Intercept) 1.251
#          SameColor   0.949    -0.95

summary(model4)$coef

#             Estimate Std. Error z value Pr(>|z|)
# (Intercept)     1.89      0.245     7.7 1.36e-14
# SameColor      -1.71      0.184    -9.3 1.40e-20

• Note SameColor is still highly significant

model5 <- glmer(cbind(TargetFocus, CompFocus) ~ SameColor + SameGender + (1 + SameColor | Subject) +
    (1 | Item), data = eye, family = "binomial")
summary(model5)$coef

#             Estimate Std. Error z value Pr(>|z|)
# (Intercept)   1.8536     0.2462    7.53 5.08e-14
# SameColor    -1.7124     0.1846   -9.28 1.74e-20
# SameGender    0.0742     0.0115    6.47 9.97e-11

• It seems the gender is effect is opposite to our expectations...
• Perhaps there is an effect of common vs. neuter gender?

model6 <- glmer(cbind(TargetFocus, CompFocus) ~ SameColor + SameGender + TargetNeuter + (1 + SameColor |
    Subject) + (1 | Item), data = eye, family = "binomial")
summary(model6)$coef

#              Estimate Std. Error z value Pr(>|z|)
# (Intercept)    1.9398     0.2509    7.73 1.06e-14
# SameColor     -1.7125     0.1845   -9.28 1.65e-20
# SameGender     0.0742     0.0115    6.47 9.92e-11
# TargetNeuter  -0.1723     0.1015   -1.70 8.96e-02

model7 <- glmer(cbind(TargetFocus, CompFocus) ~ SameColor + SameGender * TargetNeuter + (1 + SameColor |
    Subject) + (1 | Item), data = eye, family = "binomial")
summary(model7)$coef

#                         Estimate Std. Error z value  Pr(>|z|)
# (Intercept)                2.067     0.2512    8.23  1.88e-16
# SameColor                 -1.716     0.1846   -9.30  1.43e-20
# SameGender                -0.174     0.0164  -10.63  2.27e-26
# TargetNeuter              -0.416     0.1026   -4.05  5.13e-05
# SameGender:TargetNeuter    0.488     0.0230   21.24 4.35e-100

• There is clear support for an interaction

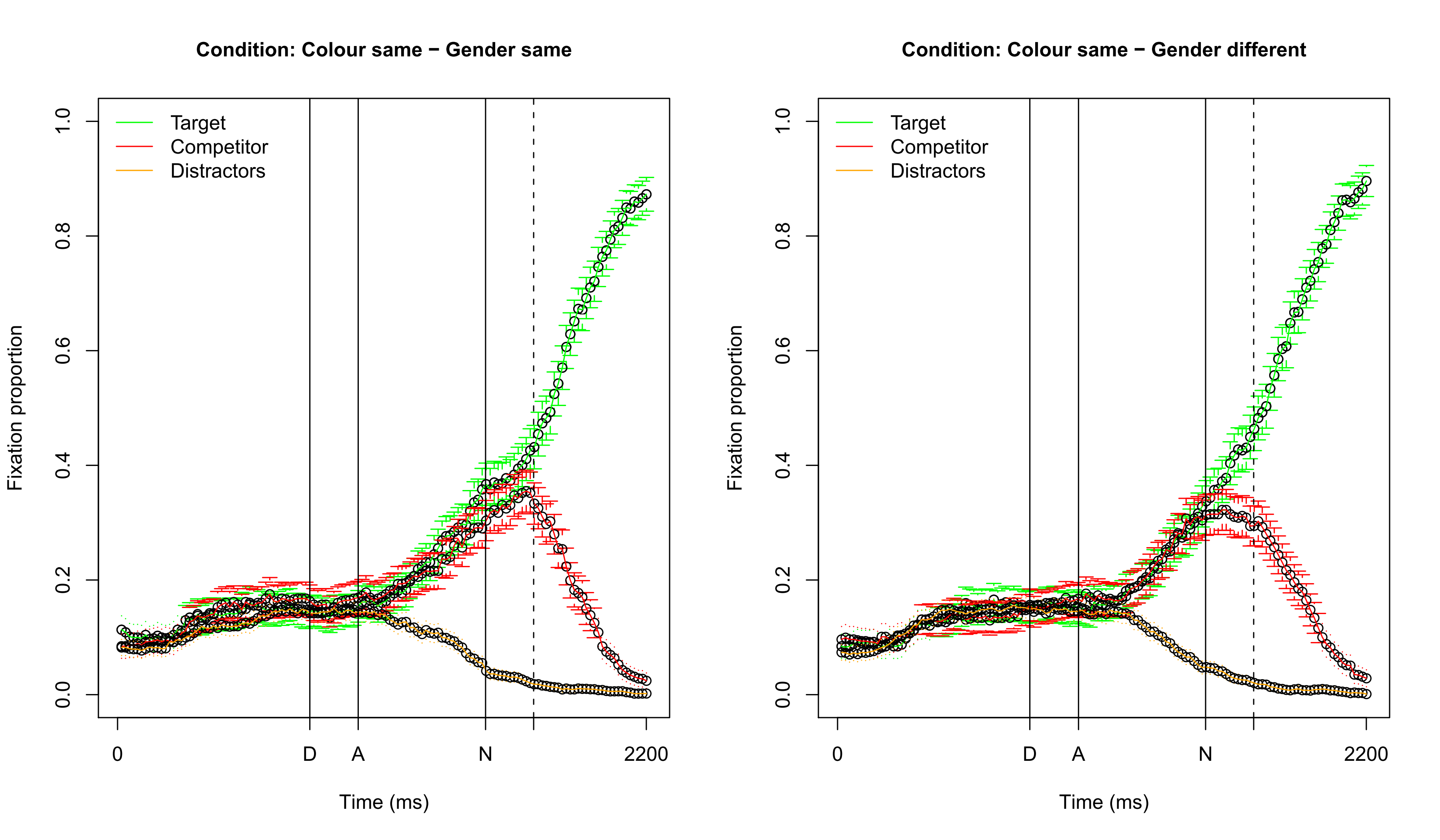

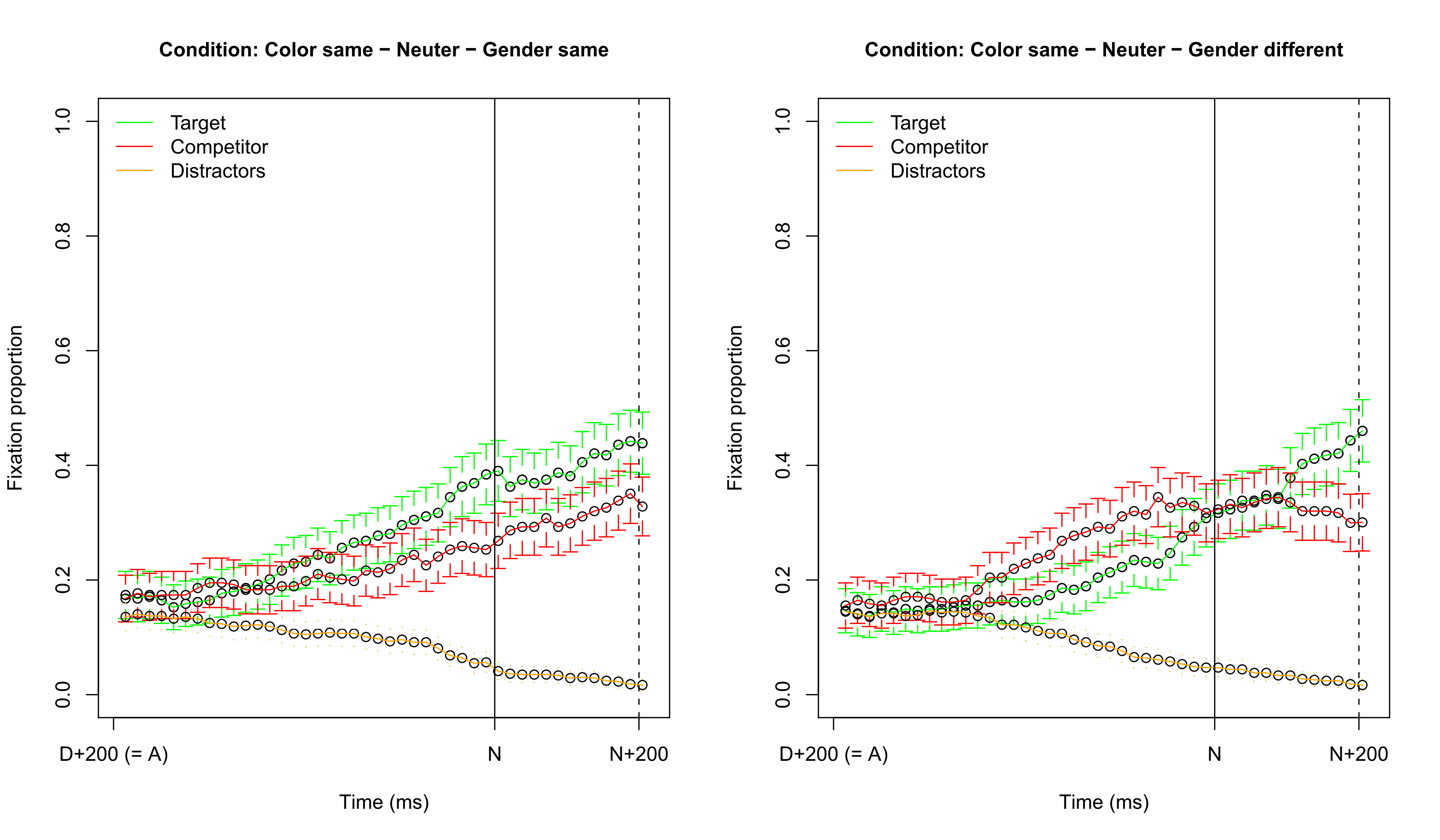

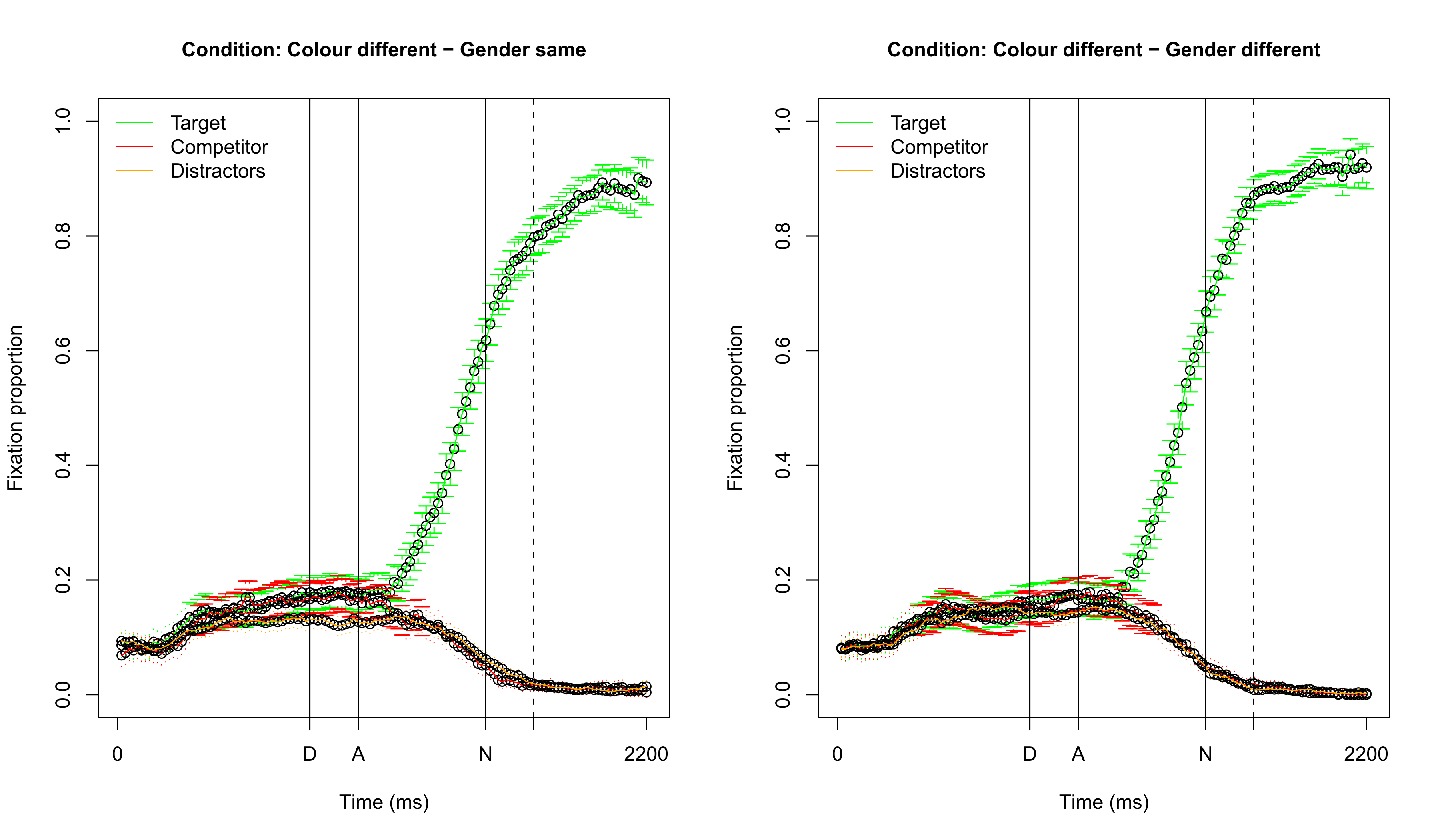

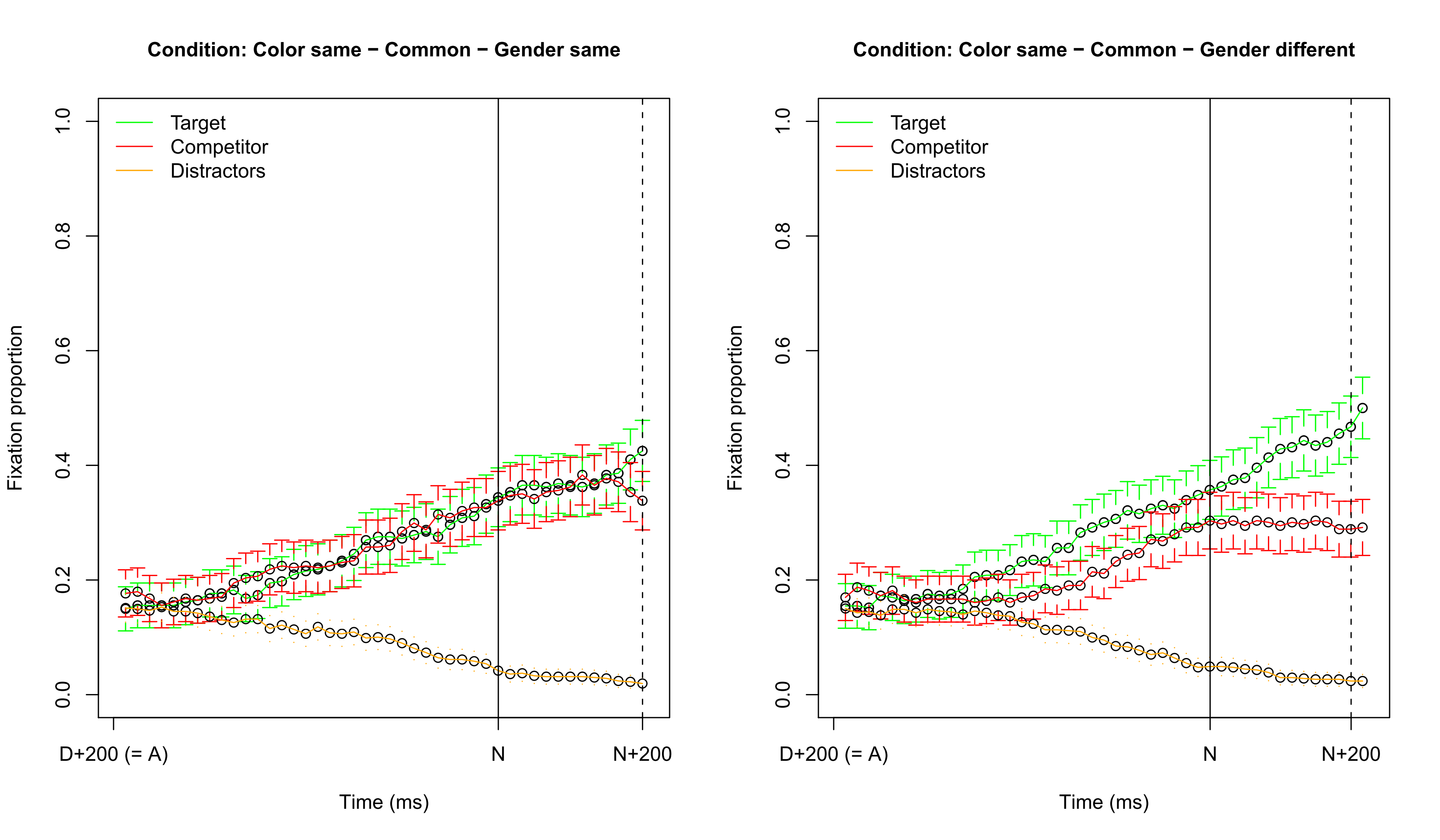

• These results are in line with the previous fixation proportion graphs

# As glmer has only a single fitting option (ML), we can immediately compare model7 (SameColor +
# SameGender * TargetNeuter) to the best previous model model5 (SameColor + SameGender)
AIC(model5) - AIC(model7)

# [1] 451

• The interaction improves the model significantly
• Unfortunately, we do not have an explanation for the strange neuter pattern
• Note that we still need to test the variables for inclusion as random slopes (in lab session)

# set a reference level for the factor
eye$TargetColor <- relevel(eye$TargetColor, "brown")
model8 <- glmer(cbind(TargetFocus, CompFocus) ~ SameColor + SameGender * TargetNeuter + TargetColor +
    (1 + SameColor | Subject) + (1 | Item), data = eye, family = "binomial")
summary(model8)$coef

#                         Estimate Std. Error z value  Pr(>|z|)
# (Intercept)                1.707     0.2672    6.39  1.65e-10
# SameColor                 -1.717     0.1848   -9.29  1.59e-20
# SameGender                -0.174     0.0164  -10.63  2.16e-26
# TargetNeuter              -0.415     0.0880   -4.72  2.32e-06
# TargetColorblue            0.275     0.1433    1.92  5.50e-02
# TargetColorgreen           0.494     0.1435    3.44  5.78e-04
# TargetColorred             0.456     0.1434    3.18  1.47e-03
# TargetColoryellow          0.502     0.1434    3.50  4.67e-04
# SameGender:TargetNeuter    0.488     0.0230   21.24 3.76e-100

eye$TargetBrown <- (eye$TargetColor == "brown") * 1
model9 <- glmer(cbind(TargetFocus, CompFocus) ~ SameColor + SameGender * TargetNeuter + TargetBrown +
    (1 + SameColor | Subject) + (1 | Item), data = eye, family = "binomial")
summary(model9)$coef

#                         Estimate Std. Error z value  Pr(>|z|)
# (Intercept)                2.139     0.2502    8.55  1.23e-17
# SameColor                 -1.717     0.1849   -9.28  1.62e-20
# SameGender                -0.174     0.0164  -10.63  2.14e-26
# TargetNeuter              -0.415     0.0913   -4.55  5.36e-06
# TargetBrown               -0.432     0.1215   -3.55  3.82e-04
# SameGender:TargetNeuter    0.488     0.0230   21.24 3.96e-100

AIC(model9) - AIC(model8)  # N.B. model8 is more complex

# [1] -2.43

qqnorm(resid(model9))
qqline(resid(model9))

• Not normal, but also not required for logistic regression!

eye2 <- eye[abs(scale(resid(model9))) < 2.5, ]  # remove items with which the model has trouble fitting
1 - (nrow(eye2)/nrow(eye))  # only about 0.5% removed

# [1] 0.0053

model10 <- glmer(cbind(TargetFocus, CompFocus) ~ SameColor + SameGender * TargetNeuter + TargetBrown +
    (1 + SameColor | Subject) + (1 | Item), data = eye2, family = "binomial")
summary(model10)$coef  # all variables significant

#                         Estimate Std. Error z value  Pr(>|z|)
# (Intercept)                2.292     0.2981    7.69  1.51e-14
# SameColor                 -1.782     0.1953   -9.12  7.27e-20
# SameGender                -0.213     0.0166  -12.85  8.15e-38
# TargetNeuter              -0.419     0.0984   -4.26  2.07e-05
# TargetBrown               -0.460     0.1311   -3.51  4.48e-04
# SameGender:TargetNeuter    0.562     0.0233   24.13 1.16e-128

• We still need to:
  • See if the significant fixed effects remain significant when adding the (necessary) by-subject random slopes
  • See if there are other variables we should test (e.g., education level)
  • See if there are other interactions we can test
  • Apply model criticism after these steps
• We will experiment with these points in the lab session after the break!
  • We use a subset of the data (only same color)
  • Simple R-functions are used to generate all plots

• We have learned how to create logistic mixed-effects regression models
• We have learned that mixed-effects regression models:
  • Are useful when your design is not completely balanced
  • Allow a detailed inspection of the variability of the random effects for additional insight
• Note that we analyzed this data in a non-optimal way:
  • It would be better to predict the focus for every individual timepoint
• After the break:
  • http://www.let.rug.nl/wieling/statscourse/lecture2/lab
• Next lecture: introduction to generalized additive modeling
