# Introduction to Generalized Additive Modeling using articulography data

## Lecture 3 of advanced regression for linguists

Martijn Wieling
Computational Linguistics Research Group

## This lecture

• Introduction
• Articulography
• Using articulography to study L2 pronunciation differences
• Design
• Methods: R code
• Results
• Discussion

• Generalized additive model (GAM): relaxing assumption of linear relation between dependent variable and predictor
• Relationship between individual predictors and (possibly transformed) dependent variable is estimated by a non-linear smooth function: $g(y) = s(x_1) +s(x_2,x_3) + a_4x_4 + ...$
• Multiple predictors can be combined in a (hyper)surface smooth (next lecture)

## Question 1

• Advantage of GAM over manual specification of non-linearities: the optimal shape of the non-linearity is determined automatically
• Appropriate degree of smoothness is automatically determined on the basis of cross validation to prevent overfitting
• Fitting minimizes combined error and "wigglyness"
• Number of basis functions limits the maximum amount of non-linearity

## First ten basis functions

• Choosing a smoothing basis
• Single predictor or isotropic predictors: thin plate regression spline (this lecture)
• Efficient approximation of the optimal (thin plate) spline
• Combining non-isotropic predictors: tensor product spline (next lecture)
• Random effects can be treated as smooths as well (Wood, 2008)
• R: gam and bam (package mgcv)
• For more (mathematical) details, see Wood (2006)

## Differences between native and non-native English

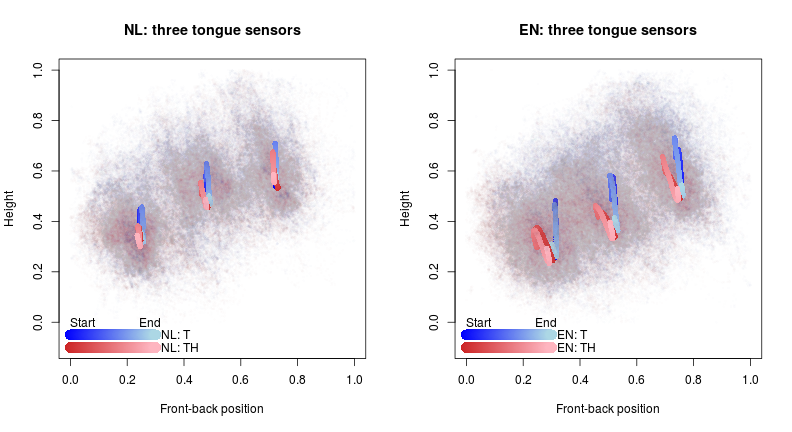

• 19 native Dutch speakers from Groningen
• 22 native Southern Standard British English speakers from London
• Material: 10 minimal pairs [t]:[θ] repeated twice:
• 'fate'-'faith', 'forth'-'fort', 'kit'-'kith', 'mitt'-'myth', 'tent'-'tenth'
• 'tank'-'thank', 'team'-'theme', 'tick'-'thick', 'ties'-'thighs', 'tongs'-'thongs'
• Note that the sound [θ] does not exist in the Dutch language
• The pronunciation of the words was preceded and followed by /ə/
• Goal: compare distinction between this sound contrast for both groups
• Preprocessing: Positions and time are normalized per speaker (between 0 and 1)

## Data overview

load("art.rda")

#          Word Axis Sensor Participant RecBlock    Time SeqNr Position Group Sound
# 112 @_faith_@    X     TB   VENI-EN_1        6 0.00278    21    0.842    EN    TH
# 113 @_faith_@    X     TB   VENI-EN_1        6 0.01065    21    0.844    EN    TH
# 114 @_faith_@    X     TB   VENI-EN_1        6 0.01852    21    0.843    EN    TH
# 115 @_faith_@    X     TB   VENI-EN_1        6 0.02639    21    0.842    EN    TH
# 116 @_faith_@    X     TB   VENI-EN_1        6 0.03426    21    0.842    EN    TH
# 117 @_faith_@    X     TB   VENI-EN_1        6 0.04213    21    0.839    EN    TH

dim(art)

# [1] 1083578      10


## First model: tongue frontness for "theme" and "team"

#### (R version 3.3.2 (2016-10-31), mgcv version 1.8.16, itsadug version 2.2.4)

library(mgcv)
tm <- art[art$Word %in% c("@_theme_@", "@_team_@") & art$Sensor == "TT" & art$Axis == "X", ] tm$TTfront <- 1 - tm$Position # Position has higher values for backness: invert to represent frontness tm <- start_event(tm, event = c("Participant", "Word", "RecBlock", "SeqNr")) # sort data per individual trajectory m0 <- bam(TTfront ~ s(Time), data = tm)  ## Model summary summary(m0)  # # Family: gaussian # Link function: identity # # Formula: # TTfront ~ s(Time) # # Parametric coefficients: # Estimate Std. Error t value Pr(>|t|) # (Intercept) 0.766302 0.000621 1234 <2e-16 *** # --- # Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 # # Approximate significance of smooth terms: # edf Ref.df F p-value # s(Time) 8.73 8.98 650 <2e-16 *** # --- # Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 # # R-sq.(adj) = 0.24 Deviance explained = 24.1% # fREML = -19420 Scale est. = 0.0071077 n = 18448  ## Visualizing the non-linear time pattern of the model #### (Interpreting GAM results always involves visualization) plot(m0, select = 1, rug = F, shade = T, main = "Partial effect", ylab = "TTfront") plot_smooth(m0, view = "Time", rug = F, main = "Full effect")  ## Check if number of basis functions is adequate #### (if p-value is low and edf close to k') gam.check(m0)  # # Method: fREML Optimizer: perf newton # full convergence after 10 iterations. # Gradient range [-8.9e-06,8.16e-06] # (score -19420 & scale 0.00711). # Hessian positive definite, eigenvalue range [3.77,9223]. # Model rank = 10 / 10 # # Basis dimension (k) checking results. Low p-value (k-index<1) may # indicate that k is too low, especially if edf is close to k'. # # k' edf k-index p-value # s(Time) 9.00 8.73 1.03 0.98  ## Increasing the number of basis functions with $k$ #### (double $k$ if higher $k$ is needed, but do not set it too high, i.e. max $\frac{1}{2}$ $\times$ unique time points) m0b <- bam(TTfront ~ s(Time, k = 20), data = tm) summary(m0b)$s.table  # new edf

#          edf Ref.df   F p-value
# s(Time) 13.2   15.7 373       0

summary(m0)$s.table # original edf  # edf Ref.df F p-value # s(Time) 8.73 8.98 650 0  ## Effect of increasing $k$ plot_smooth(m0, view = "Time", rug = F, main = "m0 (k=10)") plot_smooth(m0b, view = "Time", rug = F, main = "m0b (k=20)")  ## Including individual variation: random intercepts #### (note the increased explained variance: was 24%) m1 <- bam(TTfront ~ s(Time, k = 20) + s(Participant, bs = "re"), data = tm) summary(m1)  # # Family: gaussian # Link function: identity # # Formula: # TTfront ~ s(Time, k = 20) + s(Participant, bs = "re") # # Parametric coefficients: # Estimate Std. Error t value Pr(>|t|) # (Intercept) 0.76911 0.00847 90.8 <2e-16 *** # --- # Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 # # Approximate significance of smooth terms: # edf Ref.df F p-value # s(Time) 14.4 16.8 587 <2e-16 *** # s(Participant) 39.9 40.0 314 <2e-16 *** # --- # Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 # # R-sq.(adj) = 0.548 Deviance explained = 55% # fREML = -24100 Scale est. = 0.004224 n = 18448  ## Effect of including a random intercept plot_smooth(m0b, view = "Time", rug = F, main = "m0b") plot_smooth(m1, view = "Time", rug = F, main = "m1", rm.ranef = T)  ## Including individual variation: random slopes m2 <- bam(TTfront ~ s(Time, k = 20) + s(Participant, bs = "re") + s(Participant, Time, bs = "re"), data = tm) summary(m2)  # # Family: gaussian # Link function: identity # # Formula: # TTfront ~ s(Time, k = 20) + s(Participant, bs = "re") + s(Participant, # Time, bs = "re") # # Parametric coefficients: # Estimate Std. Error t value Pr(>|t|) # (Intercept) 0.76910 0.00948 81.1 <2e-16 *** # --- # Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 # # Approximate significance of smooth terms: # edf Ref.df F p-value # s(Time) 14.6 16.9 582 <2e-16 *** # s(Participant) 39.4 40.0 44319 <2e-16 *** # s(Participant,Time) 39.2 40.0 37380 <2e-16 *** # --- # Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 # # R-sq.(adj) = 0.59 Deviance explained = 59.2% # fREML = -24903 Scale est. = 0.0038396 n = 18448  ## Effect of including a random slope plot_smooth(m1, view = "Time", rug = F, rm.ranef = T, main = "m1") plot_smooth(m2, view = "Time", rug = F, rm.ranef = T, main = "m2")  ## Including individual variation: factor smooths #### (i.e. including a non-linear random effect instead of a random intercept and random slope) m3 <- bam(TTfront ~ s(Time, k = 20) + s(Time, Participant, bs = "fs", m = 1), data = tm) summary(m3)  # # Family: gaussian # Link function: identity # # Formula: # TTfront ~ s(Time, k = 20) + s(Time, Participant, bs = "fs", m = 1) # # Parametric coefficients: # Estimate Std. Error t value Pr(>|t|) # (Intercept) 0.7687 0.0116 66.4 <2e-16 *** # --- # Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 # # Approximate significance of smooth terms: # edf Ref.df F p-value # s(Time) 14.4 16.6 22.9 <2e-16 *** # s(Time,Participant) 318.5 368.0 68.2 <2e-16 *** # --- # Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 # # R-sq.(adj) = 0.678 Deviance explained = 68.4% # fREML = -26799 Scale est. = 0.0030093 n = 18448  ## Visualization of individual variation plot(m3, select = 2)  ## Effect of including a random non-linear effect plot_smooth(m2, view = "Time", rug = F, main = "m2", rm.ranef = T) plot_smooth(m3, view = "Time", rug = F, main = "m3", rm.ranef = T)  ## Explore random effects yourself! ## Speeding up computation #### (via discrete and nthreads, only for default method="fREML") system.time(bam(TTfront ~ s(Time, k = 20) + s(Time, Participant, bs = "fs", m = 1), data = tm))  # user system elapsed # 7.568 0.311 7.885  system.time(bam(TTfront ~ s(Time, k = 20) + s(Time, Participant, bs = "fs", m = 1), data = tm, discrete = T))  # user system elapsed # 2.70 0.08 2.79  system.time(bam(TTfront ~ s(Time, k = 20) + s(Time, Participant, bs = "fs", m = 1), data = tm, discrete = T, nthreads = 2))  # user system elapsed # 3.141 0.105 2.627  • Note that the speed improvement when using nthreads is larger for more complex models ## Comparing "theme" and "team" in one model #### (smooths are centered, so the factorial predictor also needs to be included in the fixed effects) m4 <- bam(TTfront ~ s(Time, by = Word, k = 20) + Word + s(Time, Participant, bs = "fs", m = 1), data = tm, discrete = T, nthreads = 2) summary(m4)$p.table  # extract fixed effects from summary

#               Estimate Std. Error t value Pr(>|t|)
# (Intercept)     0.7480   0.011637    64.3        0
# Word@_theme_@   0.0416   0.000709    58.6        0

summary(m4)$s.table # extract non-linearities and random effects from summary  # edf Ref.df F p-value # s(Time):Word@_team_@ 13.3 15.6 16.1 6.24e-44 # s(Time):Word@_theme_@ 14.5 16.7 36.2 4.02e-115 # s(Time,Participant) 327.6 368.0 89.9 0.00e+00  • Does the correct-incorrect distinction improve the model? ## Assessing model improvement #### (comparing fixed effects, so method='ML' and no discrete=T) m3.ml <- bam(TTfront ~ s(Time, k = 20) + s(Time, Participant, bs = "fs", m = 1), data = tm, method = "ML") m4.ml <- bam(TTfront ~ s(Time, by = Word, k = 20) + Word + s(Time, Participant, bs = "fs", m = 1), data = tm, method = "ML") compareML(m3.ml, m4.ml)  # m3.ml: TTfront ~ s(Time, k = 20) + s(Time, Participant, bs = "fs", m = 1) # # m4.ml: TTfront ~ s(Time, by = Word, k = 20) + Word + s(Time, Participant, # bs = "fs", m = 1) # # Chi-square test of ML scores # ----- # Model Score Edf Chisq Df p.value Sig. # 1 m3.ml -26805 5 # 2 m4.ml -29232 8 2426.205 3.000 < 2e-16 *** # # AIC difference: 4971.85, model m4.ml has lower AIC.  • Model m4.ml is much better (AIC decrease > 2)! ## Visualizing the two patterns plot_smooth(m4, view = "Time", rug = F, plot_all = "Word", main = "m4", rm.ranef = T)  ## Visualizing the difference plot_diff(m4, view = "Time", comp = list(Word = c("@_theme_@", "@_team_@")), ylim = c(-0.02, 0.12), rm.ranef = T)  ## Question 2 ## Including individual variation for "theme" vs. "team" tm$ParticipantWord <- interaction(tm$Participant, tm$Word)  # new factor
m5 <- bam(TTfront ~ s(Time, by = Word, k = 20) + Word + s(Time, ParticipantWord, bs = "fs", m = 1), data = tm,
discrete = T, nthreads = 2)
summary(m5)$p.table  # Estimate Std. Error t value Pr(>|t|) # (Intercept) 0.7486 0.0124 60.31 0.0000 # Word@_theme_@ 0.0407 0.0176 2.32 0.0203  summary(m5)$s.table

#                           edf Ref.df    F  p-value
# s(Time):Word@_team_@     14.1   16.3 11.5 9.78e-31
# s(Time):Word@_theme_@    15.3   17.3 23.7 3.39e-75
# s(Time,ParticipantWord) 666.8  736.0 91.7 0.00e+00


## More uncertainty in the difference

plot_diff(m4, view="Time", comp=list(Word=c("@_theme_@","@_team_@")), ylim=c(-0.05,0.15),
main="m4: difference", rm.ranef=T)
plot_diff(m5, view="Time", comp=list(Word=c("@_theme_@","@_team_@")), ylim=c(-0.05,0.15),
main="m5: difference", rm.ranef=T)


## Autocorrelation in the data is a problem!

#### (residuals should be independent, otherwise the standard errors and p-values are wrong)

m5acf <- acf_resid(m5)  # show autocorrelation


## Correcting for autocorrelation

(rhoval <- m5acf[2])  # correlation of residuals at time t with those at time t-1

#     1
# 0.956

m6 <- bam(TTfront ~ s(Time, by = Word, k = 20) + Word + s(Time, ParticipantWord, bs = "fs", m = 1), data = tm,
rho = rhoval, AR.start = tm$start.event, discrete = T, nthreads = 2) summary(m6)$p.table

#               Estimate Std. Error t value Pr(>|t|)
# (Intercept)     0.7485     0.0116   64.44   0.0000
# Word@_theme_@   0.0406     0.0164    2.47   0.0136

summary(m6)$s.table  # edf Ref.df F p-value # s(Time):Word@_team_@ 15.5 17.6 11.57 3.48e-33 # s(Time):Word@_theme_@ 16.6 18.2 24.56 6.76e-82 # s(Time,ParticipantWord) 550.3 737.0 5.09 0.00e+00  ## Autocorrelation has been removed par(mfrow = c(1, 2)) acf_resid(m5, main = "ACF of m5") acf_resid(m6, main = "ACF of m6")  ## Clear model improvement compareML(m5.ml, m6.ml)  # m5.ml: TTfront ~ s(Time, by = Word, k = 20) + Word + s(Time, ParticipantWord, # bs = "fs", m = 1) # # m6.ml: TTfront ~ s(Time, by = Word, k = 20) + Word + s(Time, ParticipantWord, # bs = "fs", m = 1) # # Model m6.ml preferred: lower ML score (24976.885), and equal df (0.000). # ----- # Model Score Edf Difference Df # 1 m5.ml -33287 8 # 2 m6.ml -58264 8 -24976.885 0.000 # # AIC difference: 48750.28, model m6.ml has lower AIC.  ## Explore autocorrelation yourself! ## Question 3 ## Distinguishing the two speaker groups tm$WordGroup <- interaction(tm$Word, tm$Group)
m7 <- bam(TTfront ~ s(Time, by = WordGroup, k = 20) + WordGroup + s(Time, ParticipantWord, bs = "fs",
m = 1), data = tm, rho = rhoval, AR.start = tm$start.event, discrete = T, nthreads = 2) summary(m7)$p.table

#                       Estimate Std. Error t value Pr(>|t|)
# (Intercept)             0.7257     0.0145   50.20 0.000000
# WordGroup@_theme_@.EN   0.0490     0.0205    2.40 0.016622
# WordGroup@_team_@.NL    0.0480     0.0212    2.26 0.023651
# WordGroup@_theme_@.NL   0.0792     0.0212    3.73 0.000196

summary(m7)$s.table  # edf Ref.df F p-value # s(Time):WordGroup@_team_@.EN 15.4 17.5 10.12 4.14e-28 # s(Time):WordGroup@_theme_@.EN 16.2 18.0 20.55 8.27e-67 # s(Time):WordGroup@_team_@.NL 10.1 12.8 3.84 3.66e-06 # s(Time):WordGroup@_theme_@.NL 13.6 16.2 7.83 4.91e-19 # s(Time,ParticipantWord) 530.6 735.0 4.43 0.00e+00  ## The difference between EN and NL is necessary compareML(m6.ml, m7.ml)  # m6.ml: TTfront ~ s(Time, by = Word, k = 20) + Word + s(Time, ParticipantWord, # bs = "fs", m = 1) # # m7.ml: TTfront ~ s(Time, by = WordGroup, k = 20) + WordGroup + s(Time, # ParticipantWord, bs = "fs", m = 1) # # Chi-square test of ML scores # ----- # Model Score Edf Chisq Df p.value Sig. # 1 m6.ml -58264 8 # 2 m7.ml -58274 14 10.317 6.000 0.002 ** # # AIC difference: 7.64, model m7.ml has lower AIC.  ## Visualizing the patterns plot_smooth(m7, view = "Time", rug = F, plot_all = "WordGroup", main = "m7", rm.ranef = T) plot_diff(m7, view = "Time", rm.ranef = T, ylim = c(-0.05, 0.2), comp = list(WordGroup = c("@_theme_@.EN", "@_team_@.EN")), main = "EN difference") plot_diff(m7, view = "Time", rm.ranef = T, ylim = c(-0.05, 0.2), comp = list(WordGroup = c("@_theme_@.NL", "@_team_@.NL")), main = "NL difference")  ## The full tongue tip model: all words and both axes #### (Word is now a random-effect factor, Sound distinguishes T from TH words) t1 <- art[art$Sensor == "TT", ]
t1$GroupSoundAxis <- interaction(t1$Group, t1$Sound, t1$Axis)
t1$WordGroupAxis <- interaction(t1$Word, t1$Group, t1$Axis)
t1$PartSoundAxis <- interaction(t1$Participant, t1$Sound, t1$Axis)
t1 <- start_event(t1, event = c("Participant", "Word", "Axis", "RecBlock", "SeqNr"))

system.time(model <- bam(Position ~ s(Time, by = GroupSoundAxis, k = 20) + GroupSoundAxis + s(Time, PartSoundAxis,
bs = "fs", m = 1) + s(Time, WordGroupAxis, bs = "fs", m = 1), data = t1, rho = rhoval, AR.start = t1$start.event, discrete = T, nthreads = 4)) # duration discrete=F: 1500 sec., discrete=T: 450 s. (1 thr.) / 260 s. (2 thr.)  # user system elapsed # 537.81 4.55 155.86  ## The full tongue tip model: all words and both axes smry <- summary(model) smry$p.table

#                       Estimate Std. Error t value Pr(>|t|)
# (Intercept)            0.30975     0.0167 18.5301 1.28e-76
# GroupSoundAxisNL.T.X  -0.06384     0.0241 -2.6492 8.07e-03
# GroupSoundAxisEN.TH.X -0.05102     0.0245 -2.0851 3.71e-02
# GroupSoundAxisNL.TH.X -0.07036     0.0239 -2.9411 3.27e-03
# GroupSoundAxisEN.T.Z   0.06149     0.0251  2.4522 1.42e-02
# GroupSoundAxisNL.T.Z   0.07750     0.0257  3.0157 2.56e-03
# GroupSoundAxisEN.TH.Z  0.00137     0.0250  0.0547 9.56e-01
# GroupSoundAxisNL.TH.Z  0.03537     0.0255  1.3860 1.66e-01

smry\$s.table

#                                   edf Ref.df     F   p-value
# s(Time):GroupSoundAxisEN.T.X    10.69   12.9  4.07  1.02e-06
# s(Time):GroupSoundAxisNL.T.X     9.88   12.2  3.20  1.11e-04
# s(Time):GroupSoundAxisEN.TH.X   14.33   15.6  5.58  4.93e-12
# s(Time):GroupSoundAxisNL.TH.X    9.17   11.5  1.69  6.85e-02
# s(Time):GroupSoundAxisEN.T.Z    18.46   18.6 55.54 3.88e-205
# s(Time):GroupSoundAxisNL.T.Z    18.06   18.3 30.65 9.70e-107
# s(Time):GroupSoundAxisEN.TH.Z   17.82   18.1 38.89 1.71e-137
# s(Time):GroupSoundAxisNL.TH.Z   16.68   17.3 13.06  3.91e-38
# s(Time,PartSoundAxis)         1353.95 1469.0 28.21  0.00e+00
# s(Time,WordGroupAxis)          629.79  713.0 46.93  0.00e+00


## A clear L1-based pattern

plot_diff(model, view = "Time", rm.ranef = T, ylim = c(0.1, -0.15), comp = list(GroupSoundAxis = c("EN.TH.X",
"EN.T.X")))
plot_diff(model, view = "Time", rm.ranef = T, ylim = c(0.1, -0.15), comp = list(GroupSoundAxis = c("NL.TH.X",
"NL.T.X")))


## Discussion

• Native English speakers appear to make the /t/-/θ/ distinction, whereas Dutch L2 speakers of English generally do not
• Obviously, the model could be improved by separating minimal pairs into two categories

## Recap

• We have applied GAMs to articulography data and learned how to:
• use s(Time) to model a non-linearity over time
• use the k parameter to control the number of basis functions
• use the plotting functions plot_smooth and plot_diff (rm.ranef=T!)
• use the parameter setting bs="re" to add random intercepts and slopes
• add non-linear random effects using s(Time,...,bs="fs",m=1)
• use the by-parameter to obtain separate non-linearities
• Note that this factorial predictor needs to be included as fixed-effect factor as well!
• use compareML to compare models (method='ML' when comparing fixed effects)
• After the break:
