Mixed-effects regression and eye-tracking data

• Introduction
  • Gender processing in Dutch
  • Eye-tracking to reveal gender processing
• Design
• Analysis
• Conclusion

• The goal of this study is to investigate if Dutch people use grammatical gender to anticipate upcoming words
• This study was conducted together with Hanneke Loerts and is published in the Journal of Psycholinguistic Research (Loerts, Wieling and Schmid, 2012)
• What is grammatical gender?
  • Gender is a property of a noun
  • Nouns are divided into classes: masculine, feminine, neuter, ...

  • E.g., hond ('dog') = common, paard ('horse') = neuter

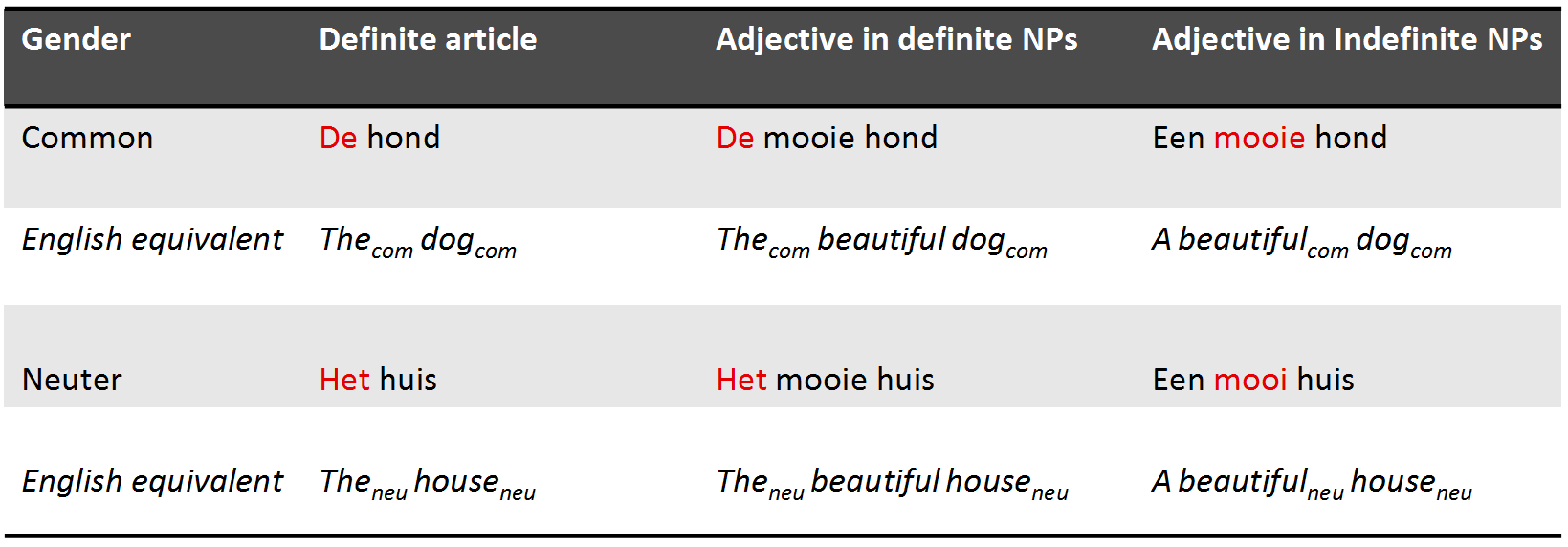

• The gender of a noun can be determined from the forms of other elements syntactically related to it (Matthews, 1997: 36)

• Gender in Dutch: 70% common, 30% neuter
• When a noun is diminutive it is always neuter
• Gender is unpredictable from the root noun and hard to learn

• Eye tracking reveals incremental processing of the listener during the time course of the speech signal
• As people tend to look at what they hear (Cooper, 1974), lexical competition can be tested

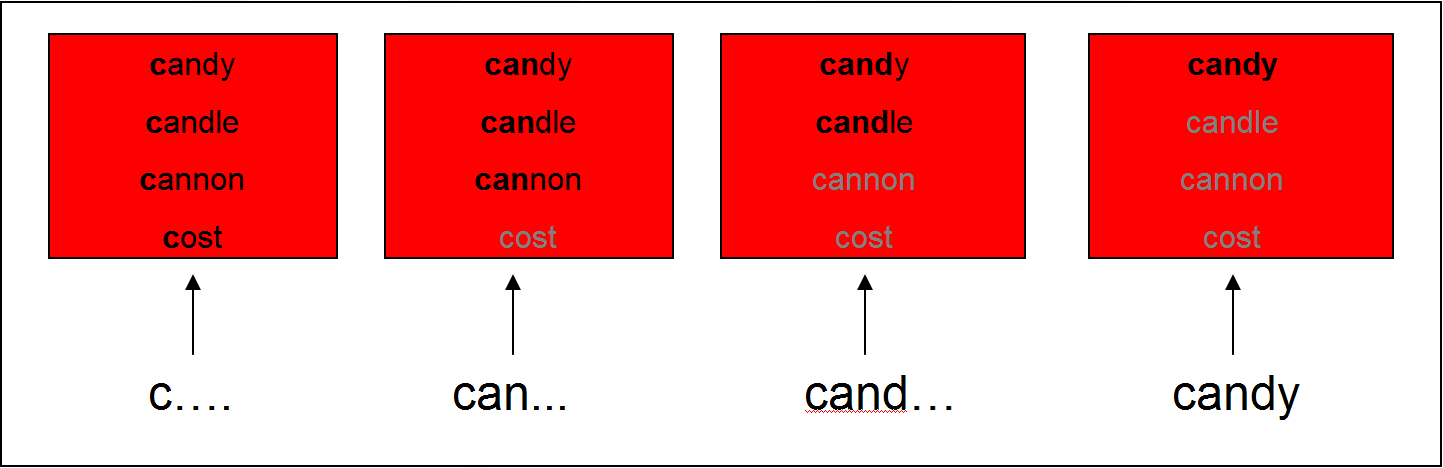

• Cohort Model (Marslen-Wilson & Welsh, 1978): Competition between words is based on word-initial activation

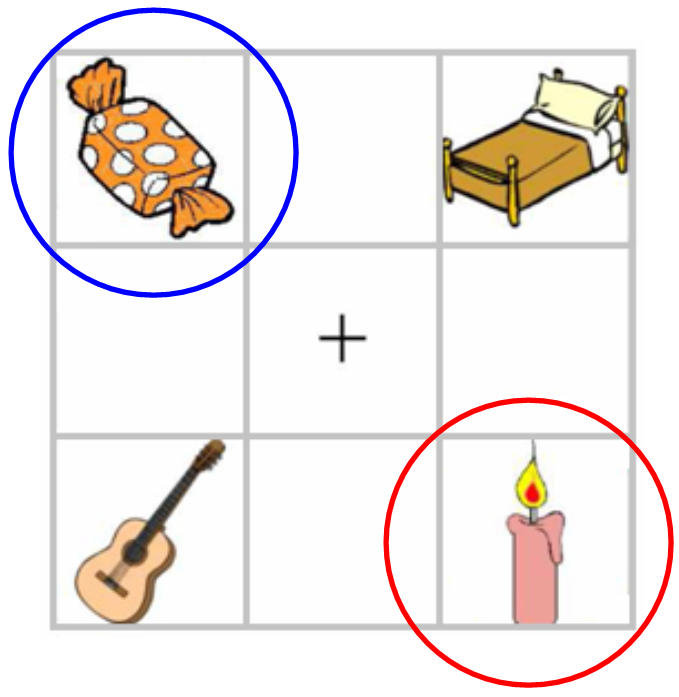

• This can be tested using the visual world paradigm: following eye movements while participants receive auditory input to click on one of several objects on a screen

• Subjects hear: "Pick up the candy" (Tanenhaus et al., 1995)
• Fixations towards target (Candy) and competitor (Candle): support for the Cohort Model

• Other models of lexical processing state that lexical competition occurs based on all acoustic input (e.g., TRACE, Shortlist, NAM)
• Does gender information restrict the possible set of lexical candidates?
  • I.e. if you hear de, will you focus more on an image of a dog (de hond) than on an image of a horse (het paard)?
  • Previous studies (e.g., Dahan et al., 2000 for French) have indicated gender information restricts the possible set of lexical candidates
• In the following, we will investigate if this also holds for Dutch with its difficult gender system using the visual world paradigm
• We analyze the data using mixed-effects regression in R

• 28 Dutch participants heard sentences like:
• Klik op de rode appel ('click on the red apple')
• Klik op het plaatje met een blauw boek ('click on the image of a blue book')

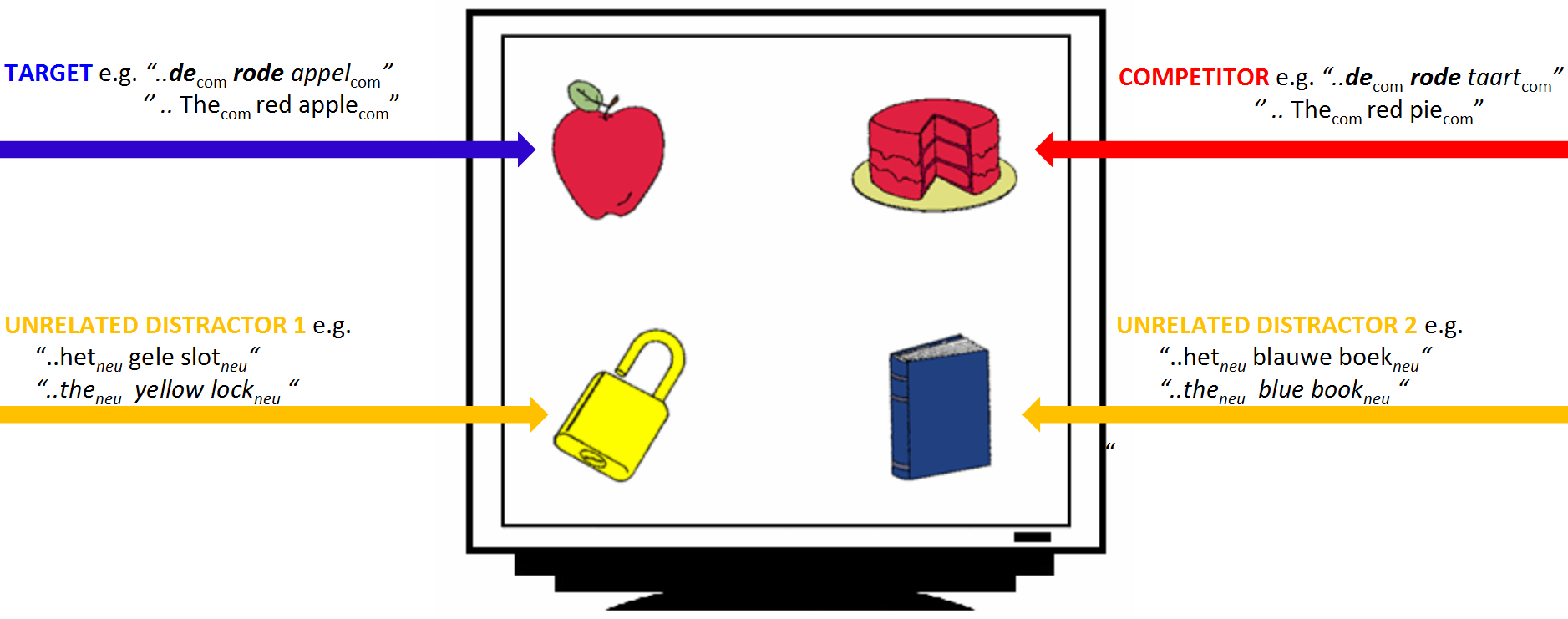

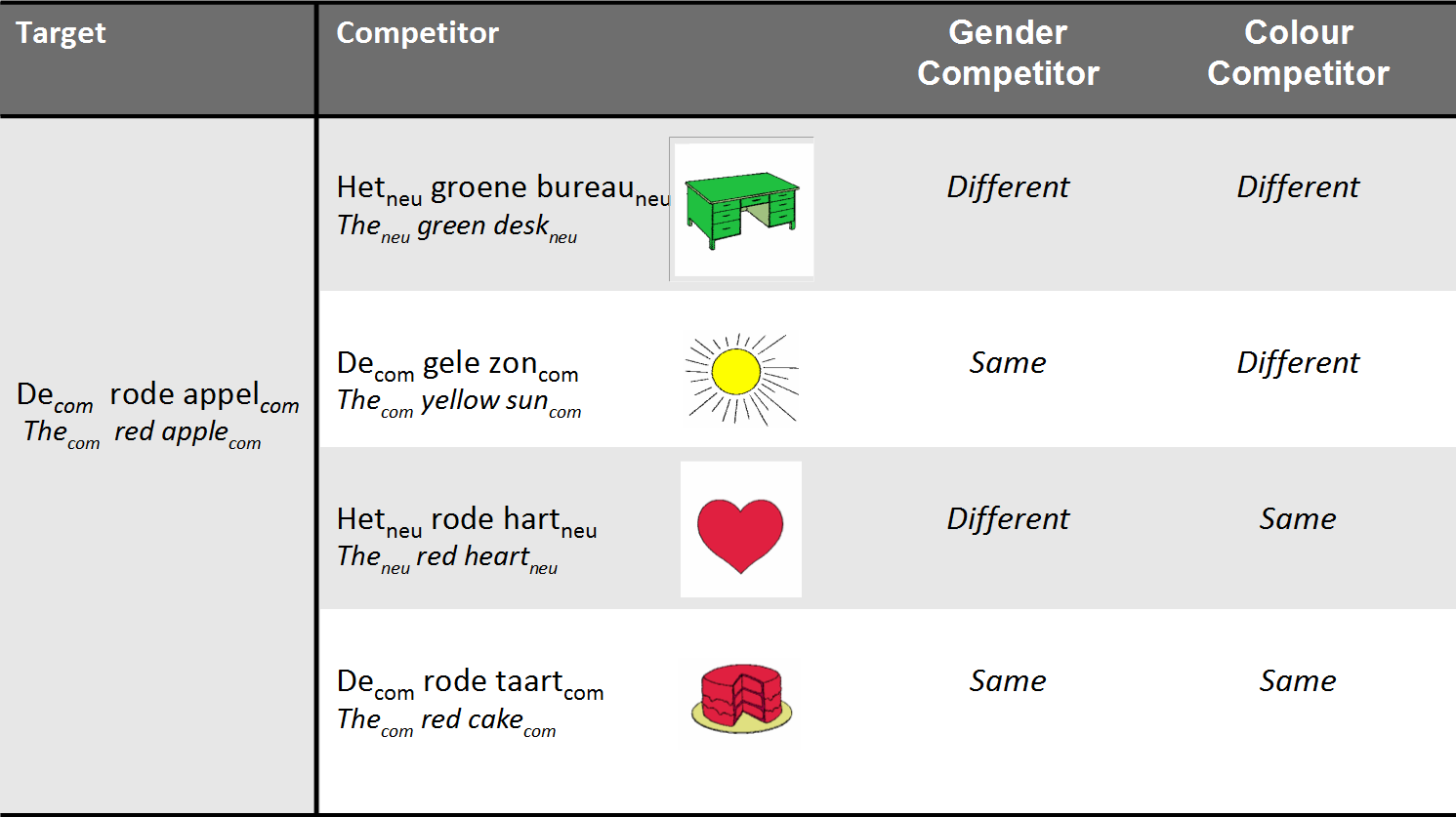

• They were shown 4 nouns varying in color and gender
• Eye movements were tracked with a Tobii eye-tracker (E-Prime extensions)

• Subjects were shown 96 different screens
• 48 screens for indefinite sentences (klik op het plaatje met een rode appel)
• 48 screens for definite sentences (klik op de rode appel)

• Difficulty 1: choosing the dependent variable
  • Fixation difference between Target and Competitor
  • Fixation proportion on Target: requires transformation to empirical logit, to ensure the dependent variable is unbounded: \(log( \frac{(y + 0.5)}{(N - y + 0.5)} )\)

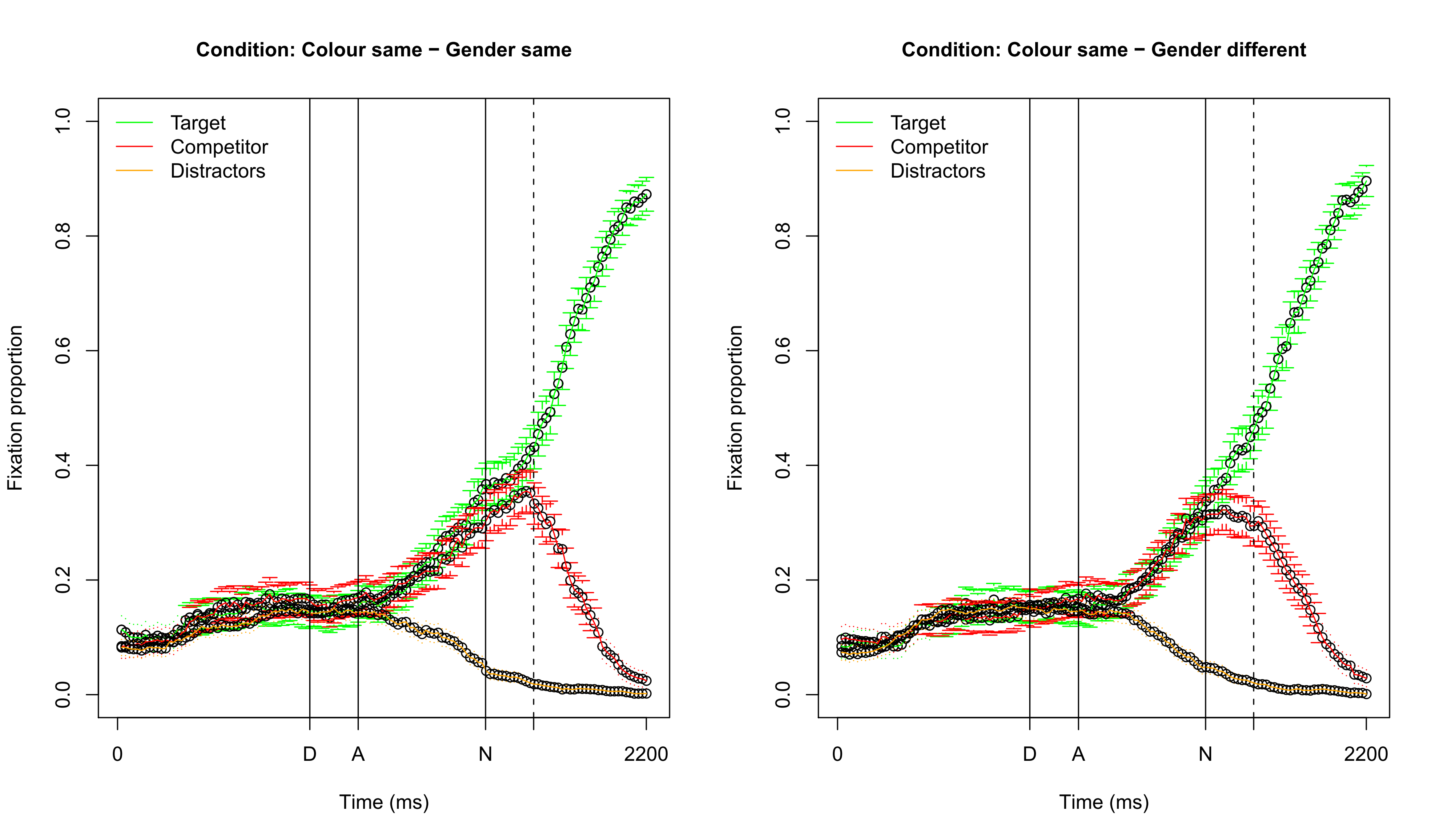

• Difficulty 2: selecting a time span
  • Note that about 200 ms. is needed to plan and launch an eye movement
  • It is possible (and better) to take every individual sampling point into account, but we will opt for the simpler approach here (in contrast to the GAM approach explained in later lectures)
• In this lecture we use:
  • The difference in fixation time between Target and Competitor
  • Averaged over the time span starting 200 ms. after the onset of the determiner and ending 200 ms. after the onset of the noun (about 800 ms.)
  • This ensures that gender information has been heard and processed, both for the definite and indefinite sentences

• Variable of interest:
  • Competitor gender vs. target gender
• Variables which could be important:
  • Competitor color vs. target color
  • Gender of target (common or neuter)
  • Definiteness of target
• Participant-related variables:
  • Gender (male/female), age, education level
  • Trial number
• Design control variables:
  • Competitor position vs. target position (up-down or down-up)
  • Color of target
  • (anything else you are not interested in, but potentially problematic)

• Check if variables correlate highly
  • If so: exclude variable / combine variables (residualization is not OK: Wurm & Fisicaro, 2014)
  • See Chapter 6.2.2 of Baayen (2008)
• Check if numerical variables are normally distributed
  • If not: try to make them normal (e.g., logarithmic or inverse transformation)
  • Note that your dependent variable does not need to be normally distributed (the residuals of your model do!)

• Center your numerical predictors when doing mixed-effects regression
  • See previous lecture

head(eye)

#   Subject   Item TargetDefinite TargetNeuter TargetColor TargetPlace CompColor CompPlace TrialID
# 1    S300   boom              1            0       green           3     brown         2       1
# 2    S300  bloem              1            0         red           4     green         2       2
# 3    S300  anker              1            1      yellow           3    yellow         2       3
# 4    S300   auto              1            0       green           3     brown         2       4
# 5    S300   boek              1            1        blue           4      blue         3       5
# 6    S300 varken              1            1       brown           1     green         3       6
#   Age IsMale Edulevel SameColor SameGender TargetPerc CompPerc FocusDiff
# 1  52      0        1         0          1       43.2     40.9      2.27
# 2  52      0        1         0          0      100.0      0.0    100.00
# 3  52      0        1         1          1       72.7     27.3     45.45
# 4  52      0        1         0          0      100.0      0.0    100.00
# 5  52      0        1         1          0       11.8     20.6     -8.82
# 6  52      0        1         0          0        0.0     51.2    -51.16

# comparing two models (REML=T for random effect comparison: default)
model1 = lmer(FocusDiff ~ (1 | Subject), data = eye)
model2 = lmer(FocusDiff ~ (1 | Subject) + (1 | Item), data = eye)
AIC(model1) - AIC(model2)

# [1] 1.97

• the AIC value is lower than 2, so we can exclude the by-item random intercept
• This indicates that the different conditions were well-controlled in the research design

# model with fixed effects, but no random-effect factor for Item
model3 = lmer(FocusDiff ~ SameColor + (1 | Subject), data = eye)
summary(model3)$coef

#             Estimate Std. Error t value
# (Intercept)     49.7       3.33    14.9
# SameColor      -43.3       2.26   -19.2

• SameColor is highly important as \(|t| > 2\)
• Negative estimate: more difficult to distinguish target from competitor
• We need to test if the effect of SameColor varies per subject
• If there is much between-subject variation, this will influence the significance of the variable in the fixed effects

# as SameColor is a binary predictor (contrasting it with the intercept), it needs to be correlated
# with the random intercept
model4 = lmer(FocusDiff ~ SameColor + (1 + SameColor | Subject), data = eye)
AIC(model3) - AIC(model4)

# [1] 9.82

summary(model4)$varcor

#  Groups   Name        Std.Dev. Corr
#  Subject  (Intercept) 19.3
#           SameColor   12.0     -0.86
#  Residual             53.3

summary(model4)$coef

#             Estimate Std. Error t value
# (Intercept)     49.6       4.03    12.3
# SameColor      -44.2       3.23   -13.7

• Note SameColor is still highly significant as \(|t| > 2\) (absolute value)

model5 = lmer(FocusDiff ~ SameColor + SameGender + (1 + SameColor | Subject), data = eye)
summary(model5)$coef

#             Estimate Std. Error t value
# (Intercept)    49.01       4.18  11.735
# SameColor     -44.21       3.24 -13.657
# SameGender      1.15       2.24   0.513

• It seems there is no gender effect...
• Perhaps there is an effect of common vs. neuter gender?

model6 = lmer(FocusDiff ~ SameColor + SameGender * TargetNeuter + (1 + SameColor | Subject), data = eye)
summary(model6)$coef

#                         Estimate Std. Error t value
# (Intercept)                54.34       4.47   12.16
# SameColor                 -44.32       3.23  -13.71
# SameGender                 -5.92       3.14   -1.88
# TargetNeuter              -10.65       3.15   -3.38
# SameGender:TargetNeuter    14.29       4.47    3.20

• There is clear support for an interaction (the \(|t|\)'s are all close to 2)

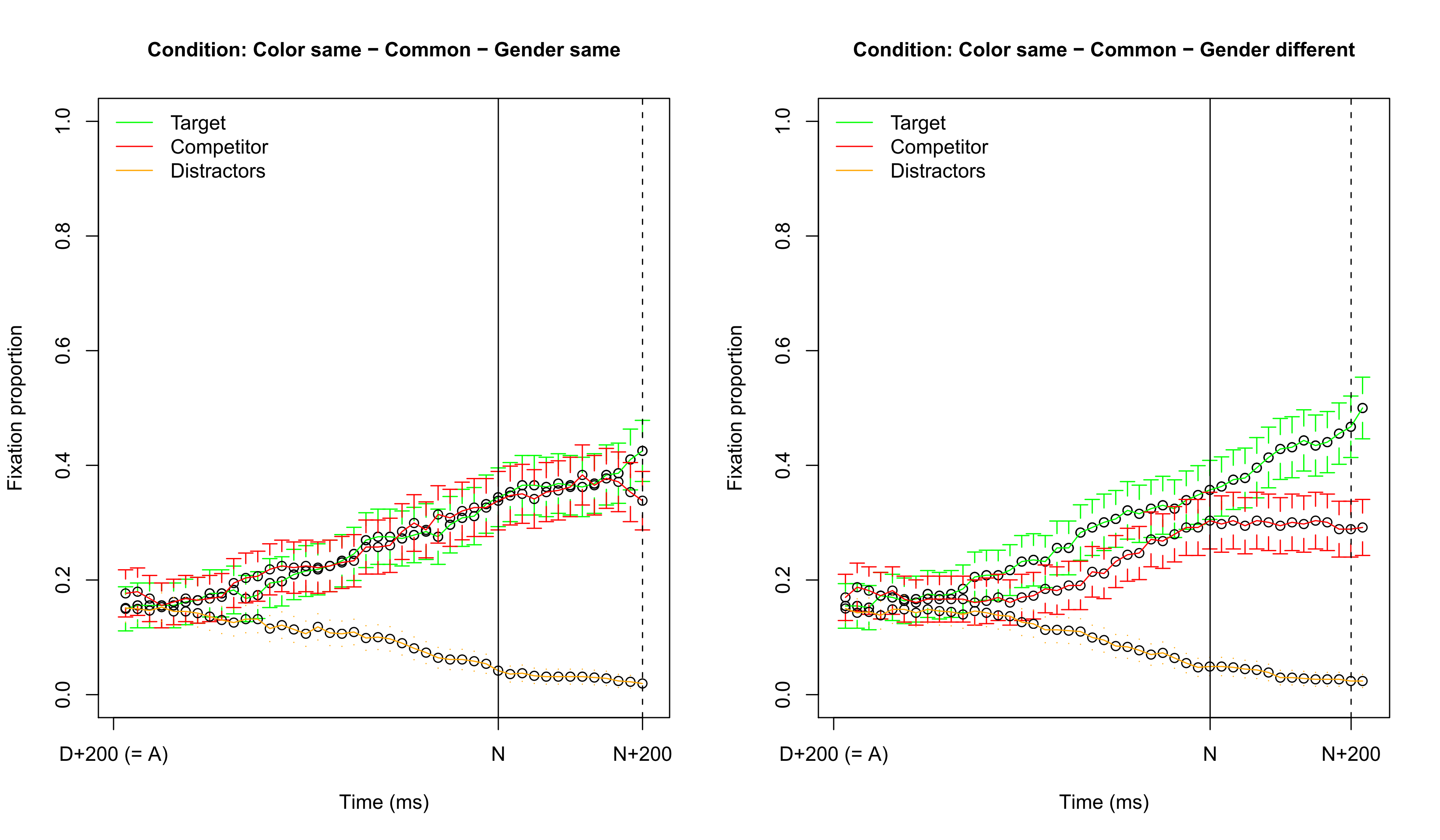

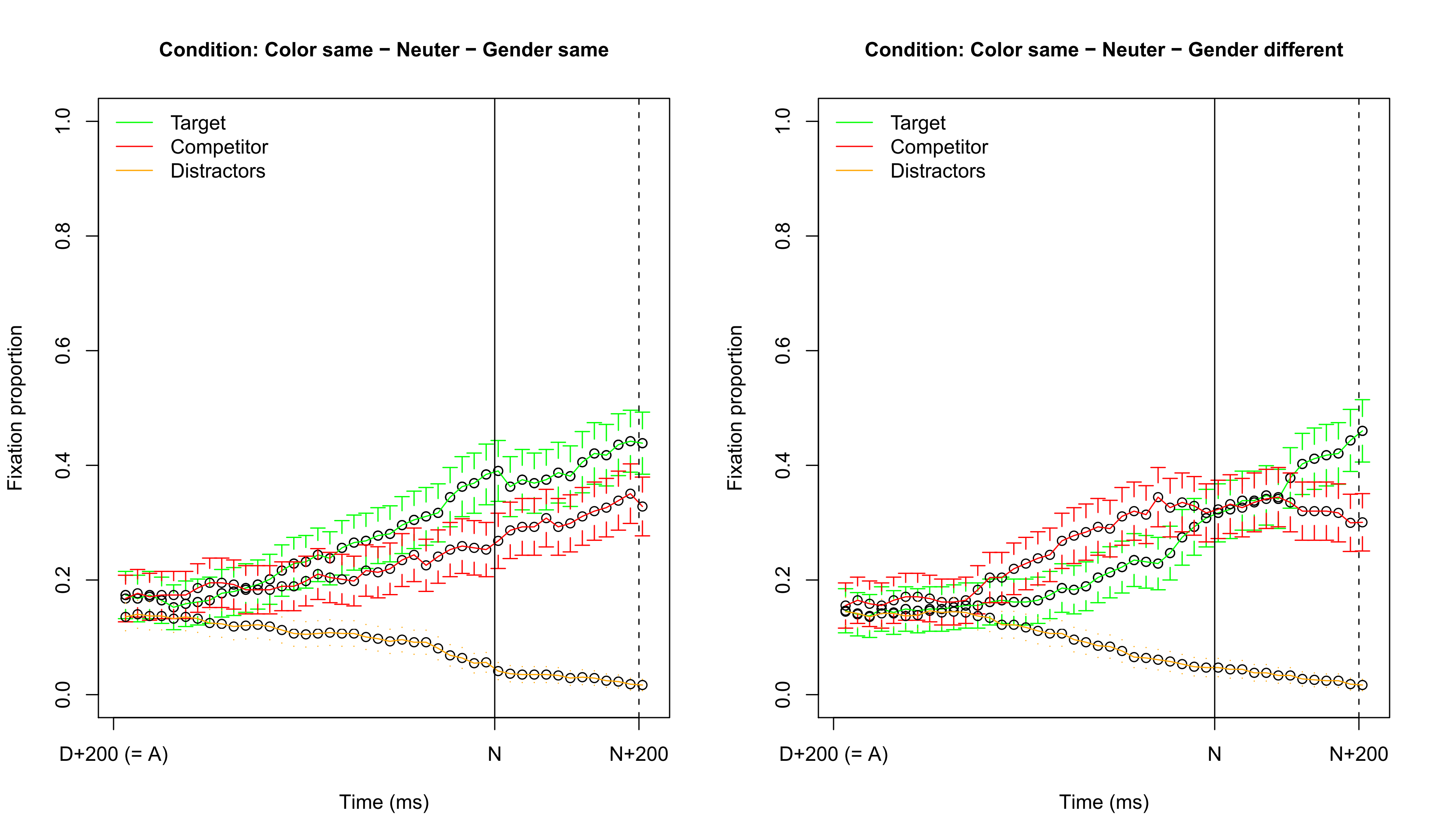

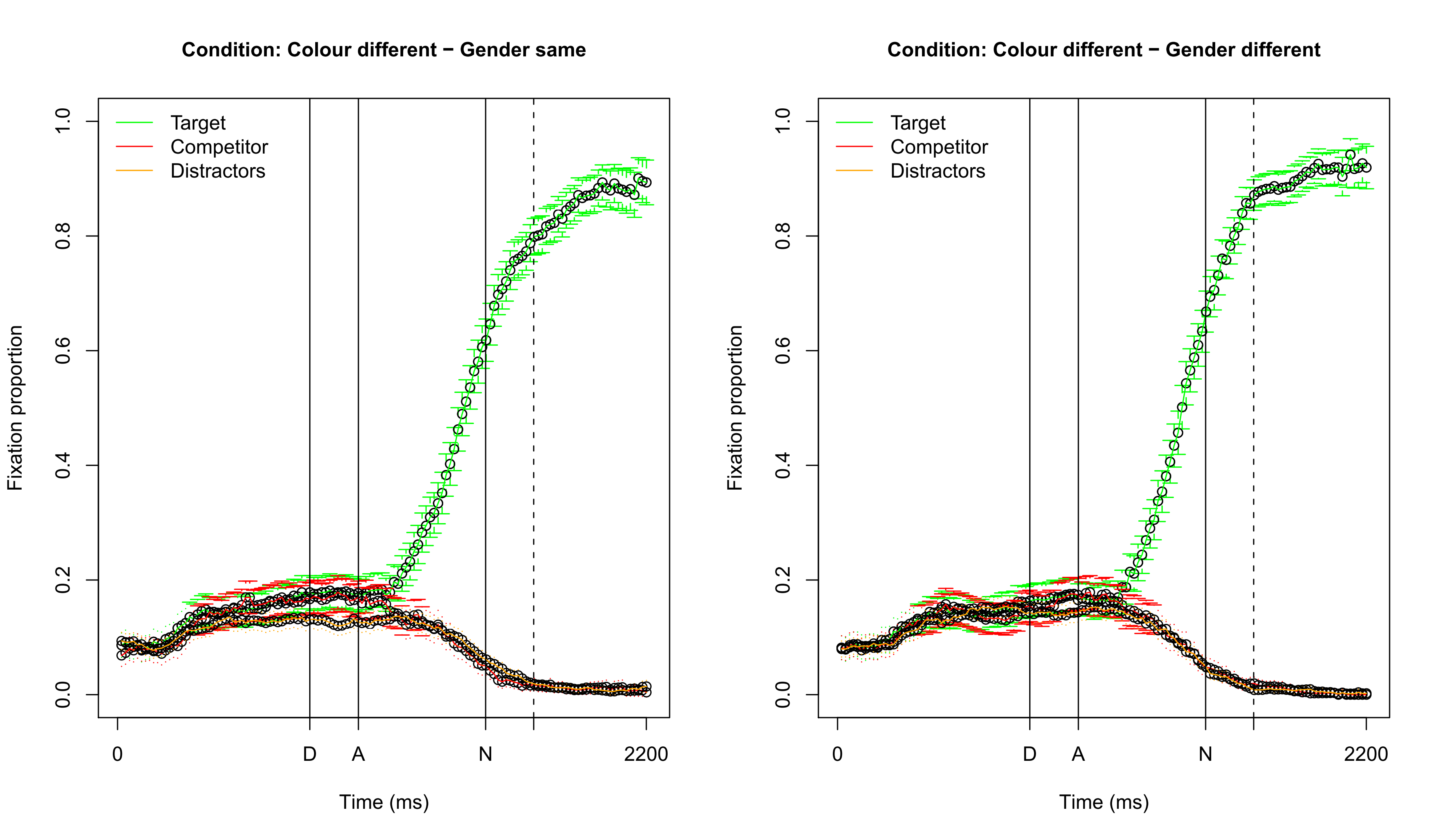

• These results are in line with the previous fixation proportion graphs

# To compare models differing in fixed effects, we specify REML=F.  We compare to the best model we
# had before, and include TargetNeuter as it is also significant by itself.
model6a = lmer(FocusDiff ~ SameColor + SameGender + TargetNeuter + (1 + SameColor | Subject), data = eye,
    REML = F)
model6b = lmer(FocusDiff ~ SameColor + SameGender * TargetNeuter + (1 + SameColor | Subject), data = eye,
    REML = F)
AIC(model6a) - AIC(model6b)

# [1] 8.21

• The interaction improves the model significantly
• Unfortunately, we do not have an explanation for the strange neuter pattern
• Note that we still need to test the variables for inclusion as random slopes (we do this in the lab session)

# set a reference level for the factor
eye$TargetColor = relevel(eye$TargetColor, "brown")
model7 = lmer(FocusDiff ~ SameColor + SameGender * TargetNeuter + TargetColor + (1 + SameColor | Subject),
    data = eye)
summary(model7)$coef

#                         Estimate Std. Error t value
# (Intercept)                41.36       5.10    8.12
# SameColor                 -44.46       3.21  -13.86
# SameGender                 -5.78       3.13   -1.85
# TargetNeuter              -10.80       3.13   -3.45
# TargetColorblue            11.54       3.66    3.15
# TargetColorgreen           16.14       3.65    4.42
# TargetColorred             16.67       3.65    4.57
# TargetColoryellow          18.29       3.65    5.01
# SameGender:TargetNeuter    14.23       4.44    3.20

eye$TargetBrown = (eye$TargetColor == "brown") * 1
model8 = lmer(FocusDiff ~ SameColor + SameGender * TargetNeuter + TargetBrown + (1 + SameColor | Subject),
    data = eye)
summary(model8)$coef

#                         Estimate Std. Error t value
# (Intercept)                57.08       4.50   12.69
# SameColor                 -44.50       3.22  -13.84
# SameGender                 -5.81       3.13   -1.86
# TargetNeuter              -10.82       3.14   -3.45
# TargetBrown               -15.68       2.98   -5.26
# SameGender:TargetNeuter    14.26       4.44    3.21

# model7b and model8b: REML=F instead of the default (TRUE)
AIC(model8b) - AIC(model7b)  # N.B. model7b is more complex

# [1] -1.77

cor(eye$FocusDiff, fitted(model8))^2  # 'explained variance' of the model (r-squared)

# [1] 0.23

qqnorm(resid(model8))
qqline(resid(model8))

eye2 = eye[abs(scale(resid(model8))) < 2.5, ]  # remove items with which the model has trouble fitting
1 - (nrow(eye2)/nrow(eye))  # only about 0.35% removed

# [1] 0.00353

model9 = lmer(FocusDiff ~ SameColor + SameGender * TargetNeuter + TargetBrown + (1 + SameColor | Subject),
    data = eye2)
cor(eye2$FocusDiff, fitted(model9))^2  # improved explained variance

# [1] 0.243

summary(model9)$coef  # all variables significant

#                         Estimate Std. Error t value
# (Intercept)                58.09       4.55   12.76
# SameColor                 -45.56       3.34  -13.64
# SameGender                 -6.32       3.09   -2.05
# TargetNeuter              -10.52       3.10   -3.39
# TargetBrown               -15.79       2.95   -5.36
# SameGender:TargetNeuter    14.82       4.39    3.37

• We need to see if the significant fixed effects remain significant when adding these variables as random slopes per subject
• There are other variables we should test (e.g., education level)
• There are other interactions we can test
• Model criticism should be applied after these steps
• We will experiment with these issues in the lab session after the break!
• We use a subset of the data (only same color)
• Simple R-functions are used to generate all plots

• We have learned that mixed-effects regression models:
  • offer an easy-to-use approach to obtain generalizable results even when your design is not completely balanced
  • allow a fine-grained inspection of the variability of the random effects, which may provide additional insight in your data
  • are easy to construct in R!
• Note that we analyzed this data in a non-optimal way: rather than averaging over a timespan, it is better to predict the focus for every individual timepoint using generalized additive modeling (the following lectures will illustrate this)
• After the break:
  • http://www.let.rug.nl/wieling/statscourse/lecture2/lab
• Next lecture: introduction to generalized additive modeling
